hpmont HD30 Series User Manual

Chapter 5 Operation Instructions Shenzhen Hpmont Technology Co., Ltd
―42― HD30 Series Inverters User Manual
5.2 Operating Instructions
5.2.1 Display Panel Description

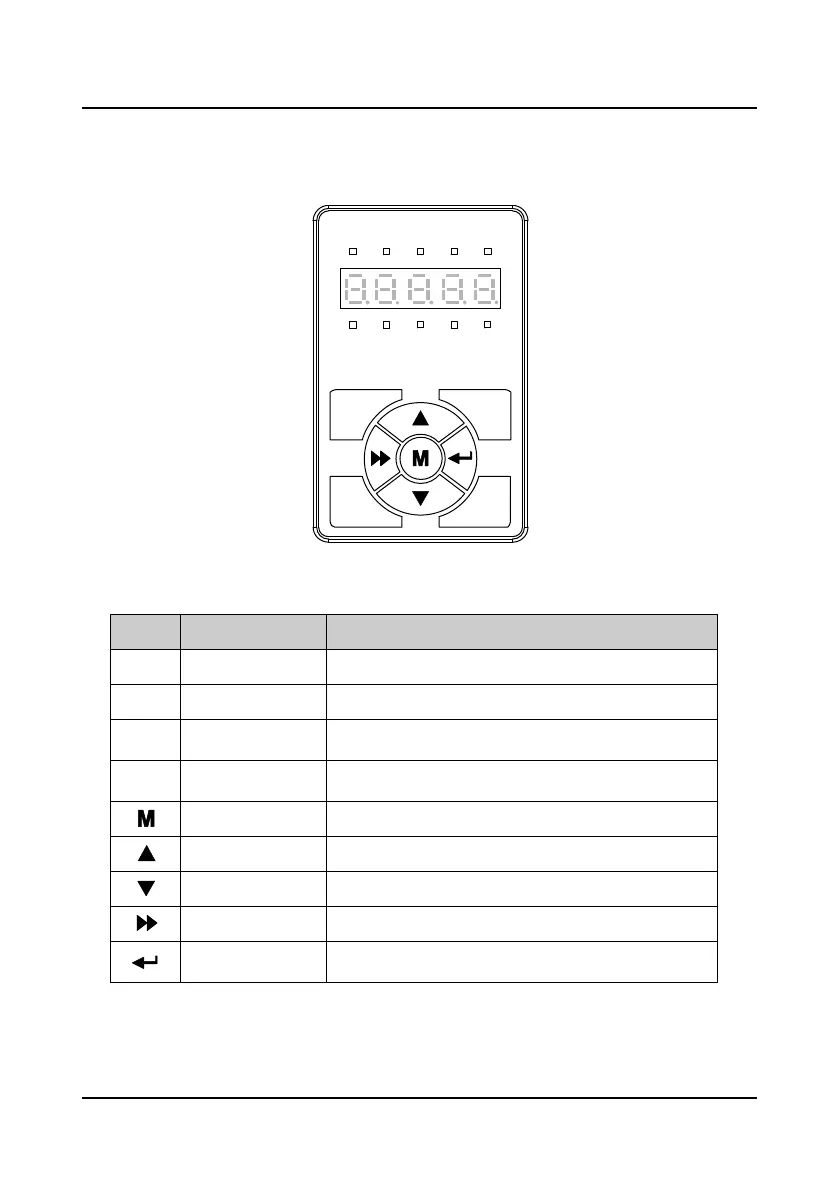

The standard HD30 inverter is installed with LED display panel, as shown in Figure 5-1.
Figure 5-1 Display panel of standard HD30 inverter
There are keys on the display panel and their functions, as shown in Table 5-1.
Table 5-1 Key function description
Key Name Function
Program/exit key Entry or exit programming key
Jog key In the mode of display panel control, jog start the inverter
Run key
In the mode of display panel control, press this key to run the
inverter
Stop/reset key
In the mode of display panel control, to stop the inverter and
reset the fault
Multi-function key Set certain function by F00.12
Increment key Increase value or parameter
Decrement key Decrease value or parameter
SHF shift key Selecting display parameter and shift bit
ENT enter/confirm
key
Enter lower menu or confirm saving the data
ENTSHF
JOGPRG
STOPRUN
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
PRG
JOG
RUN
STOP
