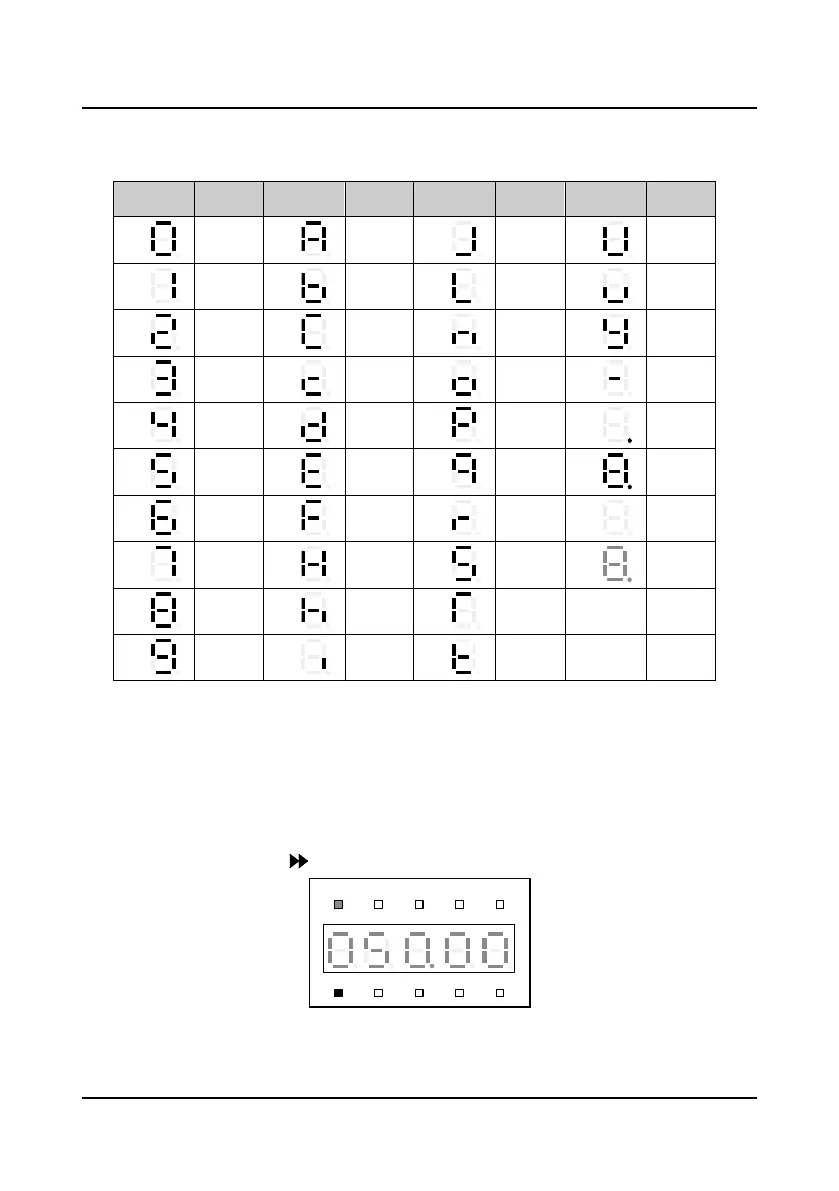

The display panel of the HD30 inverter has five LED displays and their meanings are shown as
Table 5-3.
Table 5-3 LED display description
LED display Meaning LED display Meaning LED display Meaning LED display Meaning
0 A J U
1 b L u
2 C n y
3 c o －
4 d P Point
5 E q Full display
6 F r No display
7 H S
Flash
modifiable
8 h T
9 i t
5.2.2 Display Status
The display panel of the HD30 inverter can display the parameters at stopping, running, editing,
alarming and special state.
Parameter displayed status at stopping
When the inverter stops operating, the display panel will display stopping status parameter and
the unit indicator will display the parameter’s unit, as shown in Figure 5-2. Other parameters can
be displayed by pressing (defined by parameter F18.08
－
F18.13).
Figure 5-2 Display status of the display panel
Hz
A V RPM %
REVFWD ALM LO/RE LOCK
