hpmont HD30 Series User Manual

Chapter 6 Function Introduction Shenzhen Hpmont Technology Co., Ltd
―72― HD30 Series Inverters User Manual

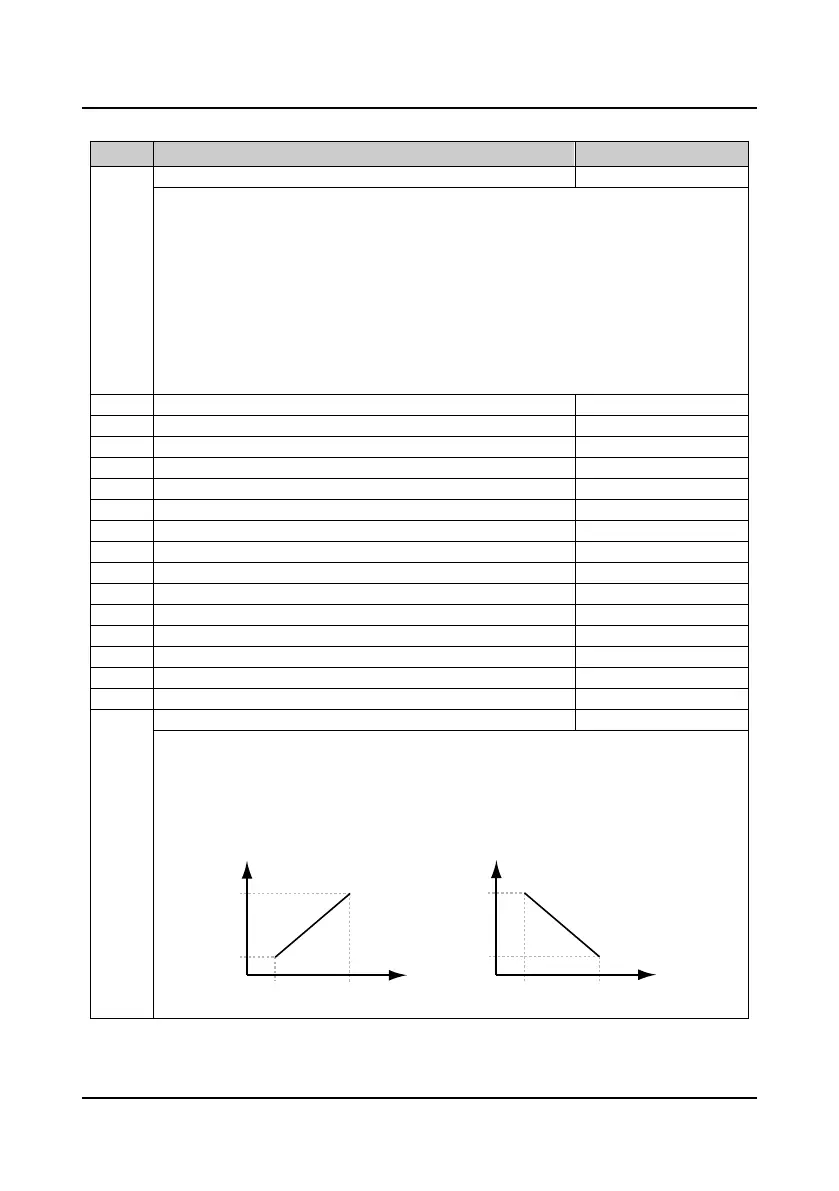

6.2.6 Group F05 External Reference Curve Parameters
No. Name Description Range
【
factory setting
】
F05.00 External reference curve selection 00000
－
22222
【
00000
】
Units: AI1 characteristic curve selection.
Tens: AI2 characteristic curve selection.
Hundreds: AI3 characteristic curve selection.
Thousands: AI4 characteristic curve selection.
Ten thousands: Pulse input characteristic curve selection.
Each bit setting:
• 0: Line 1.
• 1: Line 2.
• 2: Polyline.
Note: Only when using HD30-EIO can hundreds and thousands be enabled.
F05.01 Minimum reference of line 1 0.0
－
F05.03
【
0.0%
】
F05.02
Minimum reference corresponding value of line 1
0.0－100.0【0.0%】
F05.03 Maximum reference of line 1 F05.01
－
100.0
【
100.0%
】
F05.04
Maximum reference corresponding value of line 1
0.0－100.0【100.0%】
F05.05 Minimum reference of line 2 0.0
－
F05.07
【
0.0%
】
F05.06
Minimum reference corresponding value of line 2
0.0－100.0【0.0%】
F05.07 Maximum reference of line 2 F05.05
－
100.0
【
100.0%
】
F05.08
Maximum reference corresponding value of line 2
0.0－100.0【100.0%】
F05.09 Maximum reference of polyline F05.11
－
100.0
【
100.0%
】
F05.10
Maximum reference corresponding value of polyline
0.0－100.0【100.0%】
F05.11 Inflection point 2 reference of polyline F05.13
－
F05.09
【
100.0%
】
F05.12
Inflection point 2 corresponding value
0.0－100.0【100.0%】
F05.13 Inflection point 1 reference of polyline F05.15
－
F05.11
【
0.0%
】
F05.14
Inflection point 1 corresponding value
0.0—100.0【0.0%】
F05.15 Minimum reference of polyline 0.0
－
F05.13
【
0.0%
】
F05.16
Minimum reference corresponding value of polyline
0.0－100.0【0.0%】
F05.01－F05.04 define the line 1. F05.05－F05.08 define the line 2. F05.09－F05.16 define the
polyline.
• Line 1, line 2 and polyline can independently achieve positive and negative characteristics as
shown in following figure.
• If set the curve’s minimum reference the same as maximum reference, it must be a line. The
default frequency is the corresponding frequency of the curve minimum reference.
Reference corresponding value
P/A(reference)
F05.01
F05.05
F05.03
F05.07
F05.04
F05.08
F05.02
F05.06
Positive and negative characteristics of line
F05.01
F05.05
F05.03
F05.07
F05.02
F05.06
F05.04
F05.08
P/A(reference)
Reference corresponding value
