Chapter 6 Function Introduction Shenzhen Hpmont Technology Co., Ltd
―100― HD30 Series Inverters User Manual
No. Name Description Range
【
factory setting
】
F15.30 FDT1 detection mode 0,1
【
0
】
0: Detect according to the reference frequency.
1: Detect according to the output frequency.
F15.31 FDT1 level 0.00
－
upper limit
【
50.00Hz
】
F15.32
FDT1 lag
0.00－upper limit【1.00Hz】

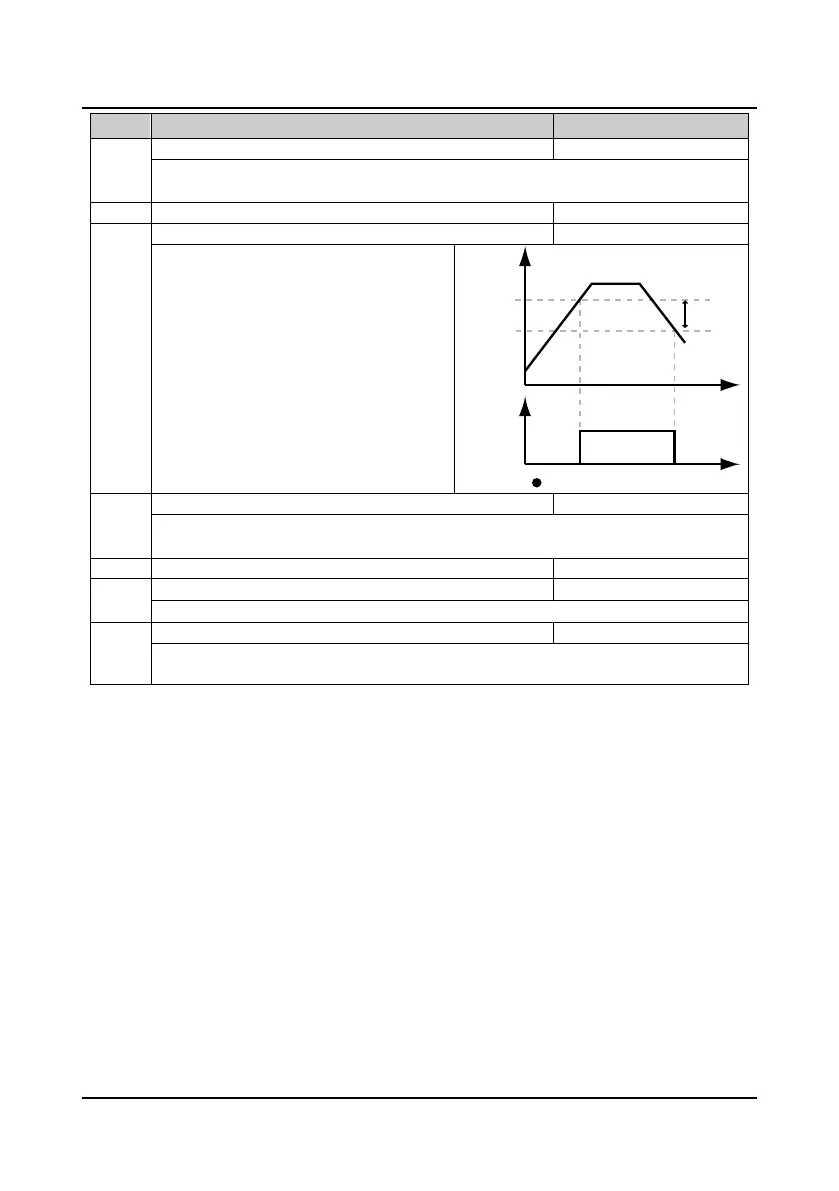

The indicating signal can be output if the setting
frequency F15.30 is higher than certain frequency
(F15.31), and becomes disabled when the setting
frequency is lower than certain frequency of FDT1
level (F15.31 - F15.32). Please refer to FL of the
right figure.
F15.33
FDT2 detection mode
0,1【0】
0: Detect according to the reference frequency.
1: Detect according to the output frequency.
F15.34
FDT2 level
0.00－upper limit【50.00Hz】
F15.35 FDT2 lag 0.00
－
upper limit
【
1.00Hz
】
Refer to parameters F15.31 and F15.32.
F15.36 Preset operating time 0
－
65535
【
0h
】
When the total operating time reaches the preset operating time (F15.36), the inverter will output an
indicating signal (500ms).
Output frequency
F15.32
F15.31
FL
DO
FL = F15.31 - F15.32
Time
Time
