Chapter 4 Electrical Installation Shenzhen Hpmont Technology Co., Ltd
22 HD30 Series Inverters User Manual

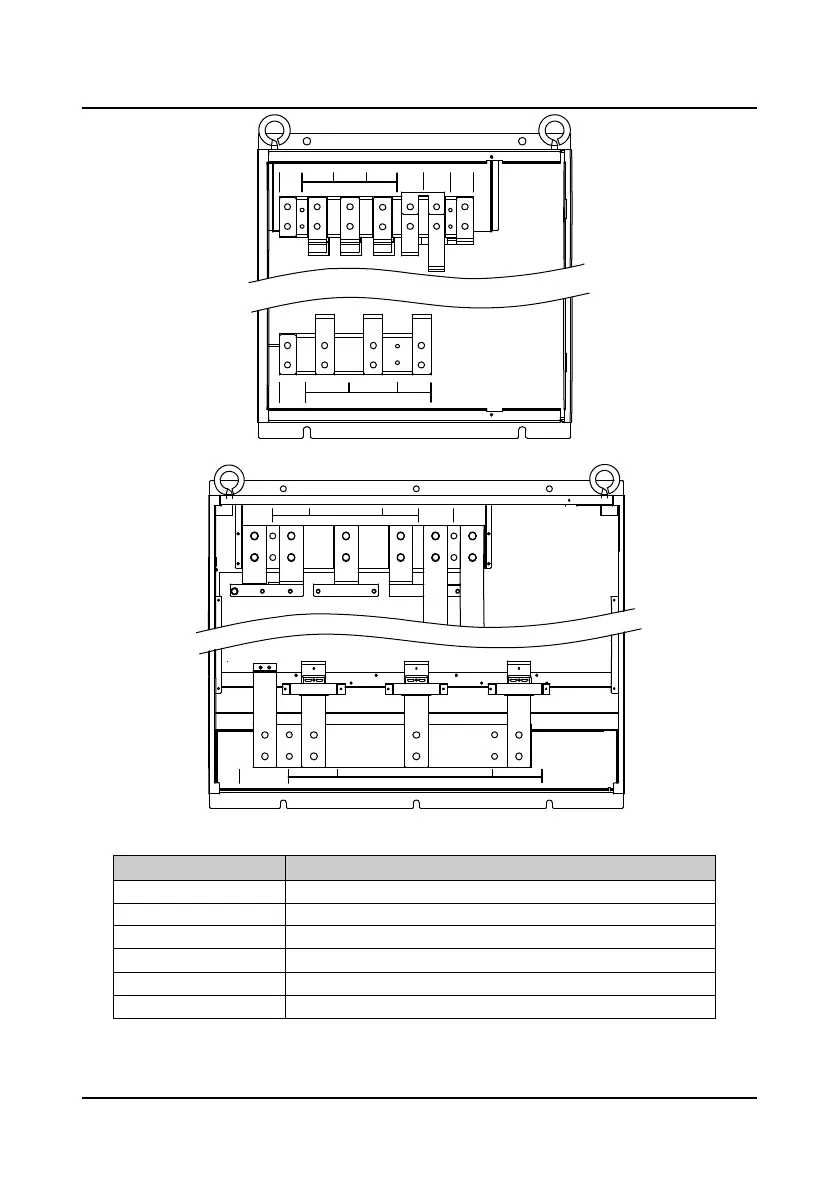

Figure 4-3 Main circuit terminal layout of 75280kW model
Figure 4-4 Main circuit terminal layout of 315400kW model
Table 4-2 HD30 main circuit terminal function description
Terminal Function Description
L1L2L3 Three-phase AC power input terminals
UVW Output terminals, connect to three-phase AC motor
P1、( + DC reactor connection terminals
+)、( - DC supply input terminals; External braking unit connection terminals.
+)、 BR Braking resistor connection terminals
PE Earth terminal, connect to the ground
L3
P1
PE
(+) (-)
L1 L2
W
U V
MOTOR
POWER
PE
PE
(+)
(-)
L1 L2 L3
POWER
W
U
V
MOTOR
PE
