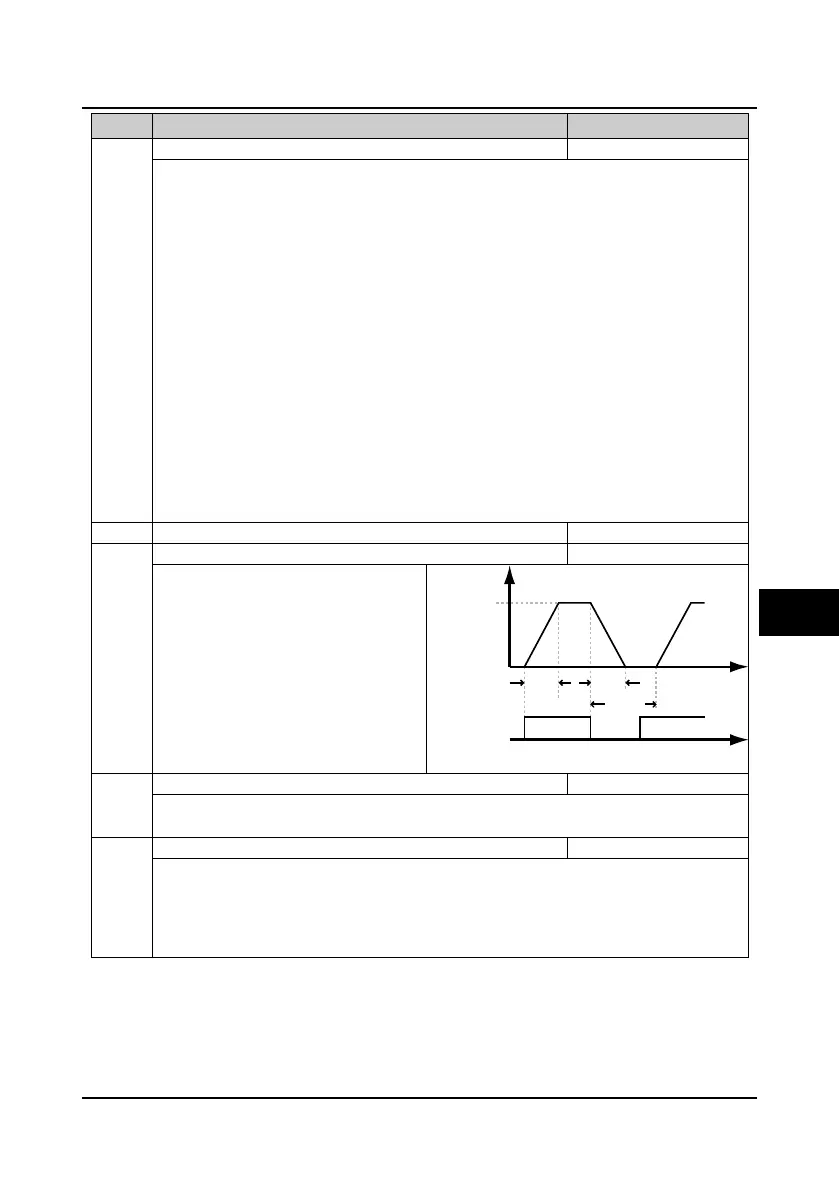

Shenzhen Hpmont Technology Co., Ltd Chapter 6 Function Introduction
HD30 Series Inverters User Manual ―61―
No. Name Description Range
factory setting
F00.14 UP/DOWN digital setting control 000
111
1001
Only when F00.11 = 0 or 1 will it be valid.
• The current setting frequency value will be replaced by a new one when the value of the F00.13
has be changed by the parameter setting.
Units: Frequency setting save selection at power outage
• 0: Frequency setting will not be saved at power outage.
• 1: Frequency setting will be saved to F00.13 at power outage.
Tens: Frequency setting control selection at stop
• 0: Frequency setting will not be restored to F00.13 at stop.
• 1: Frequency setting will be restored to F00.13 at stop.
Hundreds: Communication setting frequency storage selection
• 0: Do not save when power is off.
• 1: Save to F00.13 when power is off.
Thousands: Switch the frequency channel to the analogue selection
• 0: Do not save.
• 1: Save the frequency set by display pane.
F00.15 Jog operation frequency digital setting 1 0.00
upper limit
5.00Hz
Interval of jog operation
After cancel the jog command, the inverter
will not respond to the jog command at the
interval of jog operation set by F00.16.
• After the interval of jog is completed, it
immediately execute the arrived jog
command. As show in figure.
Operation direction selection
0: The same as run command.
1: Opposite to run command.
This function will be valid when F00.11 = 0,1,2.
0: Reverse operation is permitted.
1: Reverse operation is prohibitted. It can respond the forward/ reverse operation commands. When
the analogue value is set to positive/negative voltage and the negative voltage corresponding to the
reverse frequency, the inverter will run in accordance with the zero-frequency run.
Jog command
Frequency
Time
F00.16
Acc. Dec.
Jog operation
frequency
Time
6
