Shenzhen Hpmont Technology Co., Ltd Chapter 6 Function Introduction
HD30 Series Inverters User Manual ―67―
No. Name Description Range
factory setting
F02.16 DC braking initial frequency at stop 0.00
50.00
0.50Hz
DC braking waiting time at stop
F02.18 DC braking time at stop 0.00
60.00
0.50s

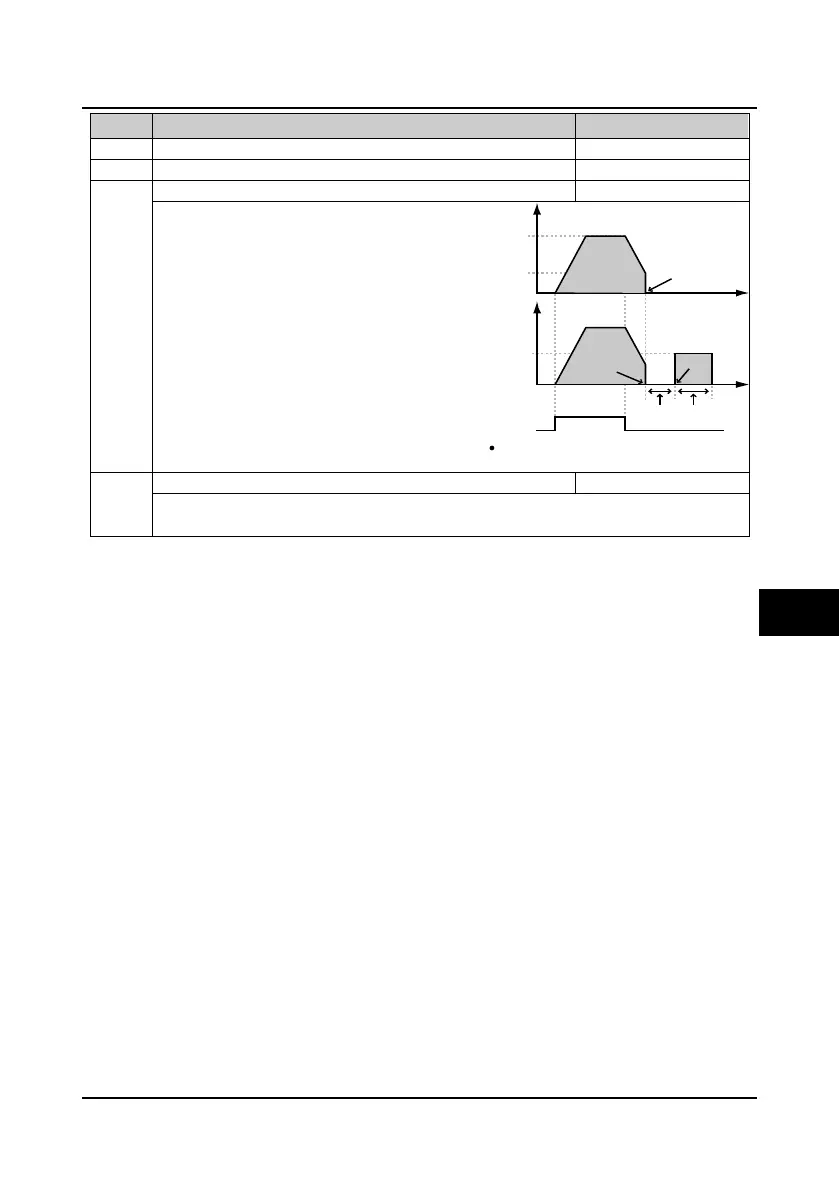

F02.17 is the interval from A to B in the right
figure during deceleration stop process.
• The inverter has no output during the
waiting time. By F02.17 setting the
waiting time, the current overshoot in
the initial stage (point B in the figure )
of braking can be reduced when the
inverter drives a high power motor.
• By F02.04 setting the DC braking
current at stop.
F02.18 = 0.00s, there is no DC braking
process at stop.
• Only when F02.13 = 2 will F02.16－
F02.18 be enabled.
F02.19 Jog control mode 0,1
0
0: The jog functions of start and stop mode etc are invalid.
1: The jog functions of start and stop mode etc are enabled.
F02.16
A
A: running frequency reaches F02.16
B: start to apply DC braking value
B
F02.18
A
F02.17
Output frequency
Running frequency
Output voltage
(effective value)
Run command
DC braking value
Time
Time
6
