Chapter 4 Operation
MONT20 User Manual V1.6 19
4.5 Upload and Download Parameter
Upload and download can only be done when using optional HD-LED keypad.
When F00.01 = 4, the keypad displays “UPLd” (as right figure). It will
enter stop status automatically after uploading is finished.
When F00.01 = 5, the keypad displays “dnLd” (as right figure). It will
enter stop status automatically after downloading is finished.
Note:
1. To download the parameter, firstly upload the parameter.
2. When downloading parameters, it displays “dFAiL”, means that the
storage parameters of keypad do not match with function parameters of
MONT20. Firstly upload the correct parameters and then download.
3. When uploading or downloading parameters, it displays “E0022” and
flashes, means EEPROM of keypad is faulty. It will jump to next function
code 10 seconds later. The troubleshooting is in 7.1 Troubleshooting, on
page 53.
Hz
A V RPM %
REVFWD ALM LO/ RE
LOC K

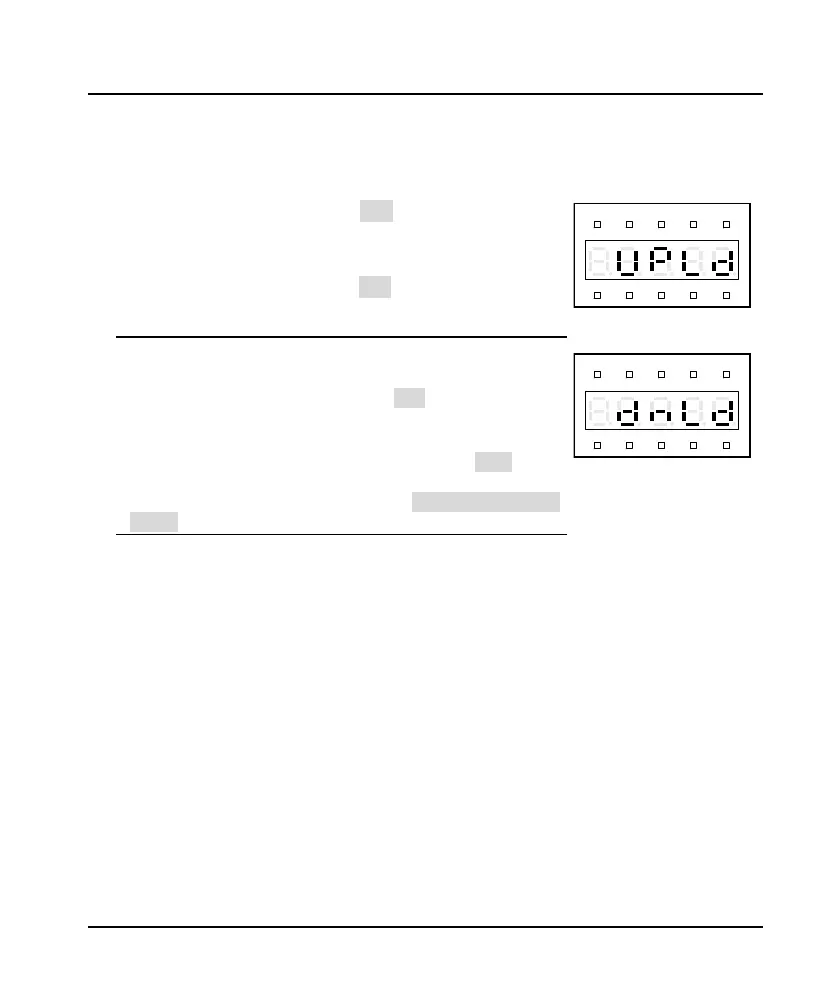

Uploading parameters
Hz
A
V RPM %
REVFWD ALM LO/ RE L OC K
Downloading parameters
