hpmont MONT20 User Manual

Chapter 4 Operation
MONT20 User Manual V1.6 15

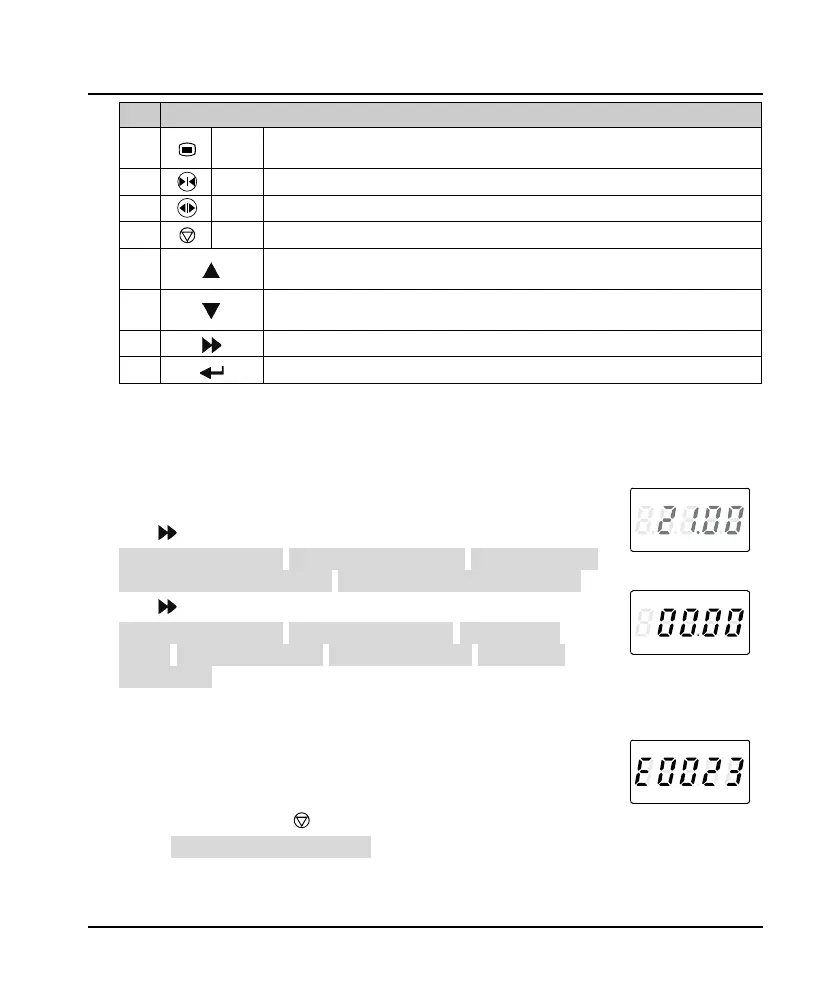

No. Description
2
PRG
Program/exit key: Enter or exit key; Switch between programming status and monitoring
status.
3 JOG
Close key: CD command when controlled by keypad.
4 RUN
Open key: OD command when controlled by keypad.
5
STOP
Stop/reset key: Stop MONT20 by using keypad; Reset the fault when detecting a fault.
6
Increase key: Increase parameter when selecting it; Increase value when setting
parameter.
7
Decrease key: Decrease parameter when selecting it; Decrease value when setting
parameter.
8
Shift key: When selecting parameter or setting parameter, shift to the next value.
9
Enter/confirm key: Enter lower menu; Save the value when setting parameter.
4.2 Display on Keypad
Display of Stop or Run Parameter
When MONT20 is in stop or run status, the keypad displays stop or run status
parameters, as shown on the right.
Press key to display stop status parameter cyclically:
d01.03 (setting frequency), d01.00 (door position pulse), d01.08 (bus voltage)
,
d01.01 (door position percentage), d01.02 (fully open/close signal of door).
Press key to display the running status parameter cyclically:
d01.03 (setting frequency), d01.04 (output frequency), d01.05 (output
voltage), d01.06 (output current), d01.07 (output torque), d01.00 (door
position pulse).
Fault Alarm Display
When MONT20 alarms fault, the keypad enters fault alarm display status and
fault code flashes, as shown on the right.
Enter group F09 to check the fault records.
Reset the fault by pressing on the keypad (
STOP
key) or external reset terminal.
Refer to 7.1 Troubleshooting, on page 53 for fault display contents.
Stop para. d01.03
OD
H z A V %
DOA
LOCK
DCACD E r r
Run para. d01.03
OD
H z A V %
DOA
LOCK
DCACD E r r
OD
H z A V %
DOA
LOCK
DCA
CD E r r
