hpmont MONT20 User Manual

Chapter 5 Function Introduction
MONT20 User Manual V1.6 21
Chapter 5 Function Introduction
5.1 Group d: Display Parameters
Group d is status display parameters.
5.1.1 d00: System Parameters
Ref. Code Function Description Setting Range [Default]
d00.00 Controller series [T20]
Display MONT20.
d00.01 Controller rated power [400W]
d00.02
Controller rated current
[2.5A]
d00.03 Controller software version [Actual value]
d00.04
Controller special software version
[Actual value]
d00.05 External keypad software version [Actual value]
5.1.2 d01: Drive Status Parameters
Ref. Code Function Description Setting Range [Default]
d01.00
Door position pulse
[Actual value]
Display pulse status of current door position. The Max. pulse corresponds to complete door open position,
and the Min. pulse corresppnds to complete door close position.
d01.01
Door position percentage
[Actual value]
Display the percentage of current front door position and the whole door width. 100.0% is complete door
open position, and 0.0% is complete door close position.
d01.02
Fully open/close signal of door
[Actual value]
Display complete OD/CD signal.
• Display by 4 digits (from right to left):
Complete OD pulse, complete CD pulse, complete OD
torque, complete CD torque.
• 0: Not complete.
• 1: Complete.

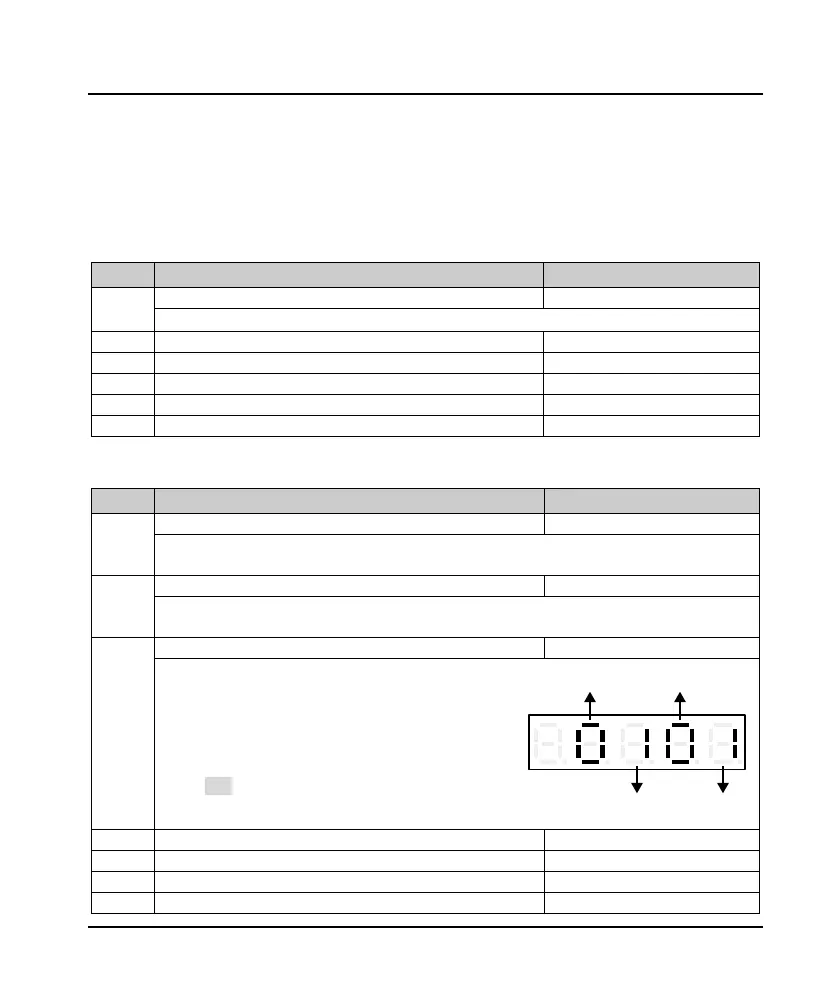

• Tak e “0101” as an example in the right figure.
d01.03
Set frequency
[Actual value]
d01.04
Output frequency
[Actual value]
d01.05
Output voltage
[Actual value]
d01.06
Output current
[Actual value]
OD pulse
complete
CD pulse
not complete
OD torque
complete
CD torque
not complete
