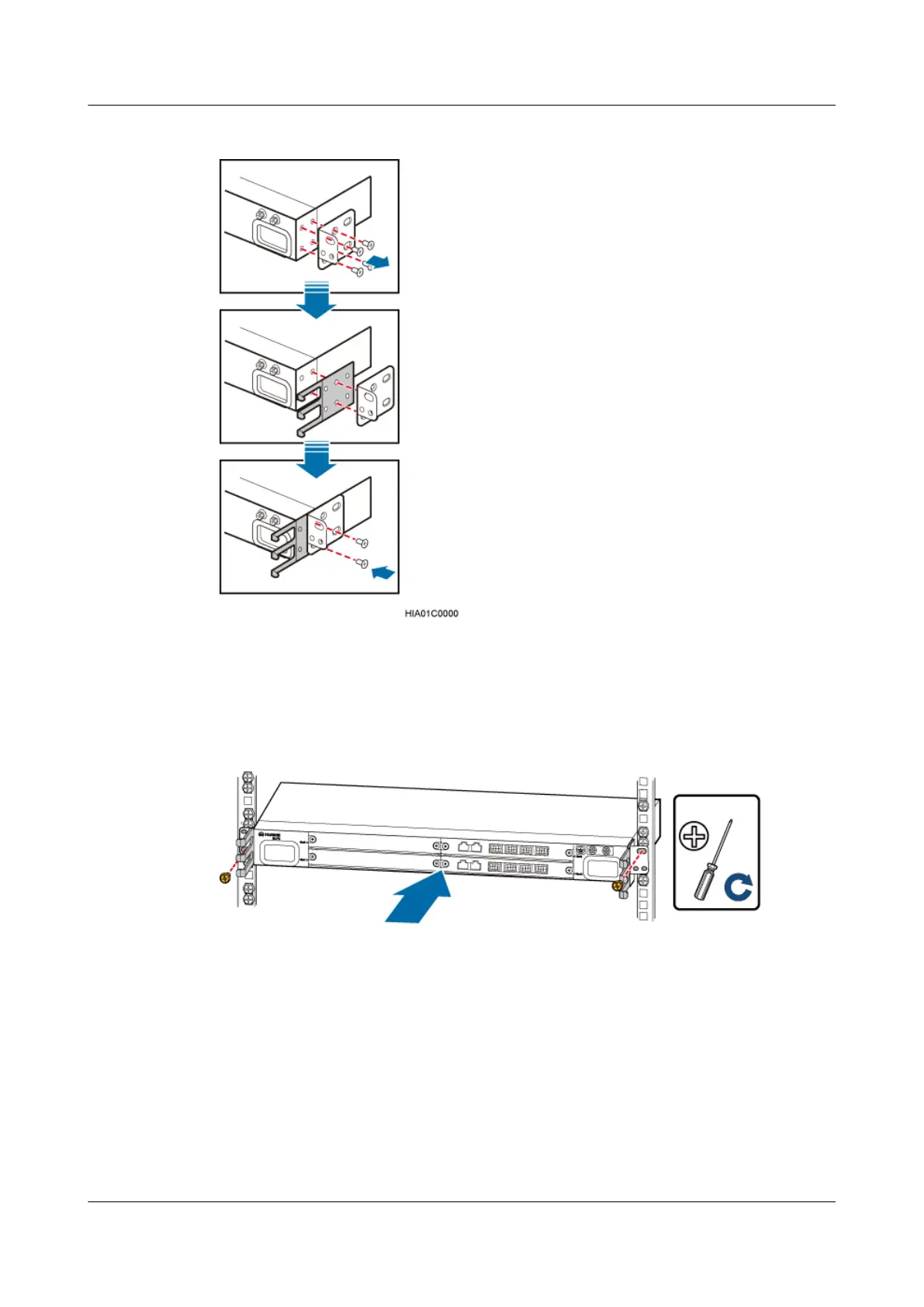

Figure 11-3 Installing cable racks
Step 2 Slide the SLPU into the cabinet, and then use the screwdriver to tighten the two screws on the
mounting ears of the SLPU, as shown in Figure 11-4.
Figure 11-4 Installing the SLPU
Step 3 Install the surge protection transfer cable for monitoring signals, as shown in Figure 11-5.
