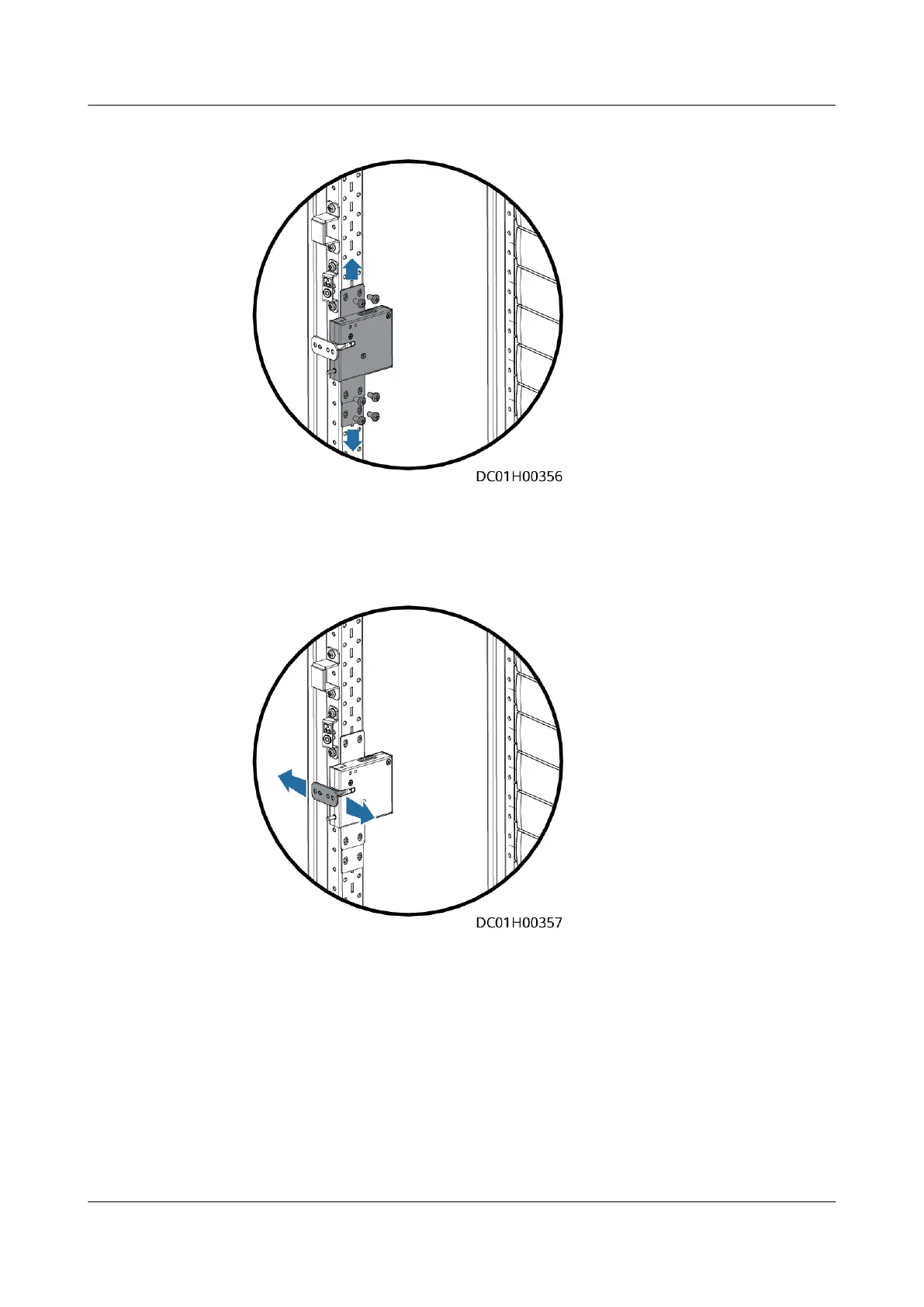

Figure 5-10 Adjusting the installation position
2. Check whether there is interference between the lock tongue and the cabinet
post. If they interfere with each other, adjust the installation position of the
lock tongue.
Figure 5-11 Adjusting the installation position
3. Check whether there is interference between the castors and the door sill at
the bottom of the cabinet. If they interfere with each other, remove the
fastener that secures the castors.
FusionModule500 Smart Mini Data Center
User Manual 5 Power-On Commissioning
Issue 01 (2020-11-30) Copyright © Huawei Technologies Co., Ltd. 133
