Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
97

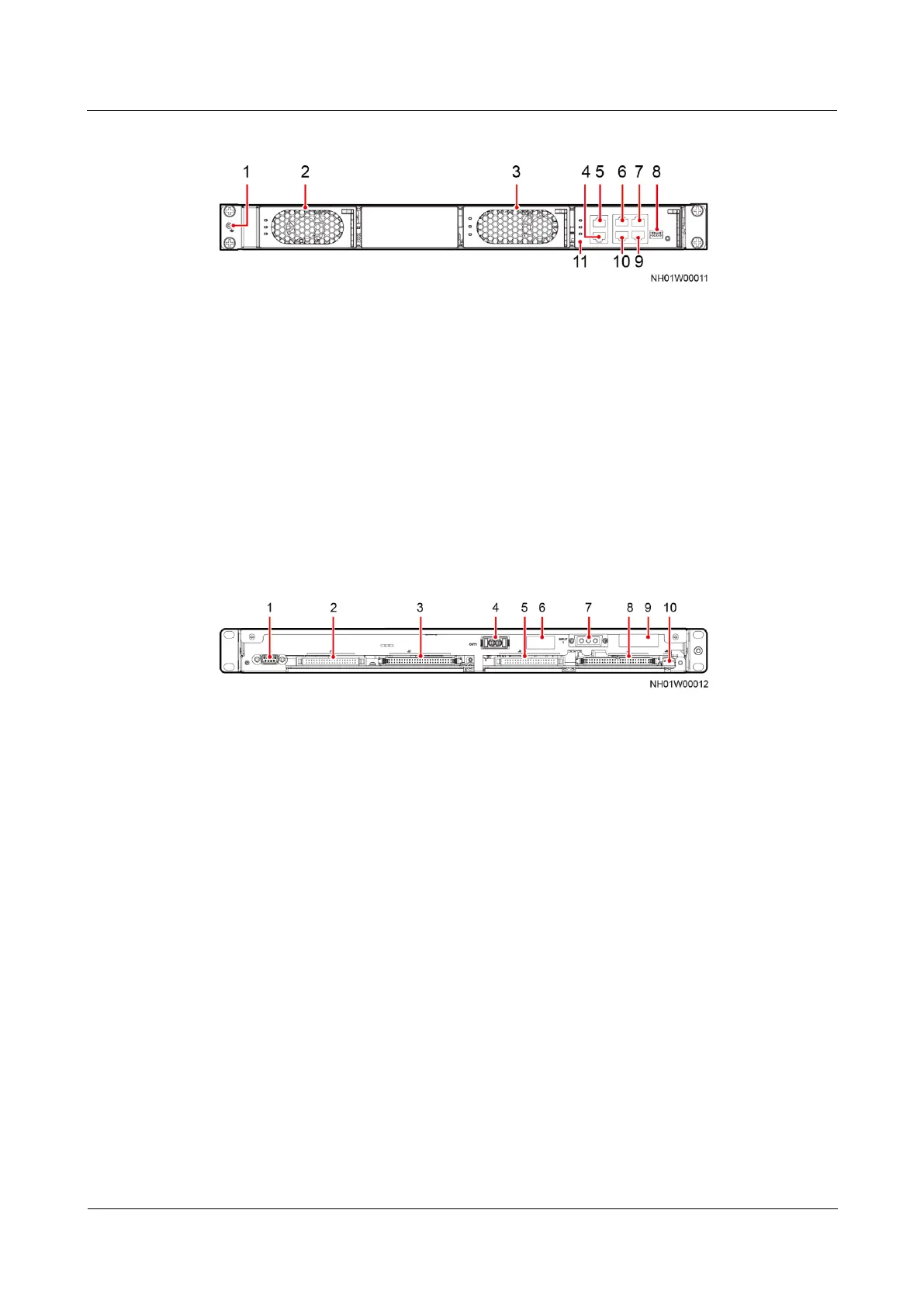

Figure 3-77 Front panel of the smart cooling product control unit
(1) Ground point
(2) Rectifier
(3) PSU
(4) FE_2 port for connecting
a smart ETH gateway PoE or
LAN ports on the ECC
(5) FE_1 port for connecting
a smart ETH gateway PoE
or LAN ports on the ECC
(6) CAN_IN (input port of
the teamwork CAN and
northbound RS485 port)
(7) RS485/12 V port for
connecting the T/H sensor
(8) Dual in-line package
(DIP) switch
(9) COM
(10) CAN_OUT (output port
of the teamwork CAN and
northbound RS485 port)
(11) Main control module
Figure 3-78 Rear panel of the smart cooling product control unit
(1) J5 port (reserved)
(2) J1 port
(3) J2 port
(4) OUT1 port
(5) J3 port
(6) OUT2 port (reserved)
(7) INPUT1 port
(8) J4 port
(9) INPUT2 port (reserved)
(10) J6 port (reserved)
