1. Level the cabinet adjacent to the end cabinet using the method in Step 2.
2. Remove the screws securing connecting kits from the cabinet, take off the connecting
kits, and properly store the removed screws, as shown by (1) in Figure 3-22.
The four connecting kits for the Converged Cabinet are bound at the upper left position of the
front door frame.

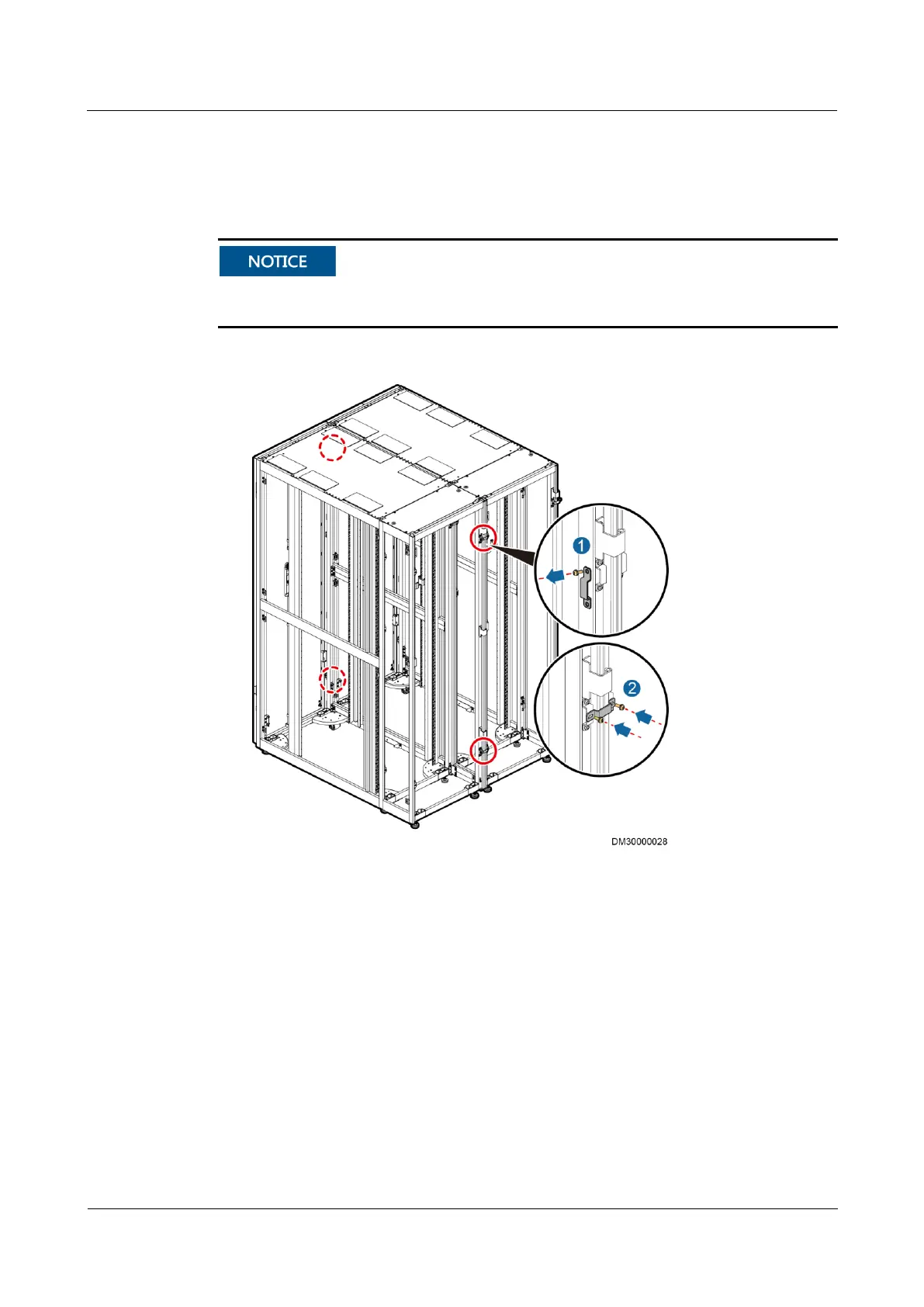

Figure 3-22 Combining cabinets
3. Combine adjacent cabinets by installing the connecting kits at the combination positions
on the front and rear doors of the cabinets with screws, as shown by (2) in Figure 3-22.
Step 4 Install other cabinets in the same way.
----End
3.6 Installing a Fan Assembly
Context
If an emergency fan is configured, perform the following steps to install it.
