FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.
4.3 Power Cable Routing

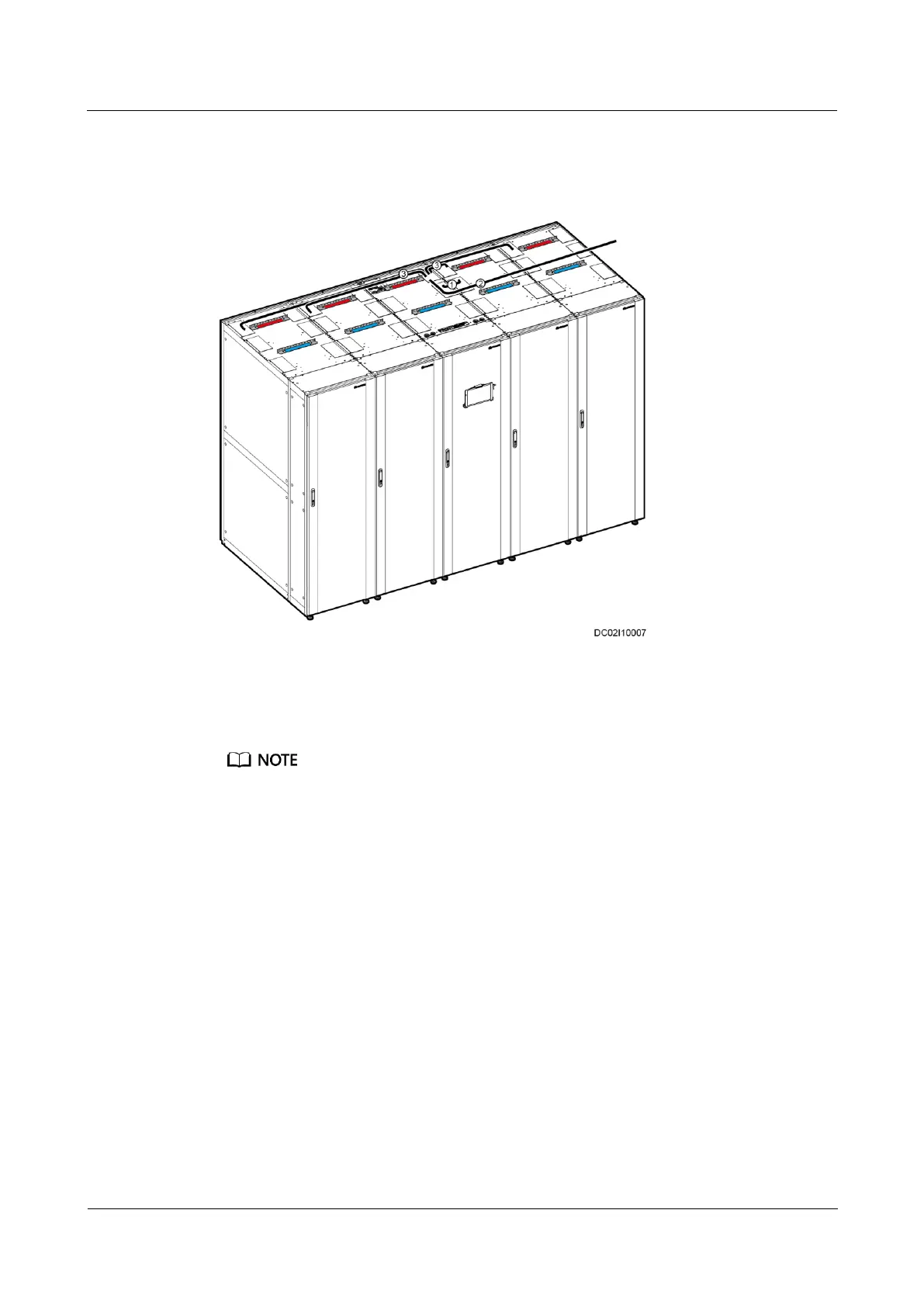

Figure 4-15 Power cable routing
(1) Power cable from the battery to
the UPS
(2) Mains input power
cable
The customer can purchase power cables as required. The recommended specifications of mains input
power cables are as follows:
6 kW and 7.5 kW loads (BOM number: 25030857): 600 V/1000 V-ZA-YJV-5 x 16 mm
2
-Black (5
cores: yellow, green, red, blue, black)-107 A-CE
12 kW and 15 kW loads (BOM number: 25030858): 600 V/1000 V-ZA-YJV-5 x 25 mm
2
-Black (5
cores: yellow, green, red, blue, black)-138 A-CE
4.4 Smart Module Grounding
1. Deploy a general ground bar (shown by (1) in Figure 4-16) in the Converged Cabinet.
2. Connect the general ground point (shown by (1) in Figure 4-17) in each cabinet to the
general ground bar in the Converged Cabinet.
3. Connect the general ground bar in the Converged Cabinet to the floor ground bar or
collective ground bar.
