FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
4 Cable Routing
Copyright © Huawei Technologies Co., Ltd.
203
Smart ETH Gateway Cable Route

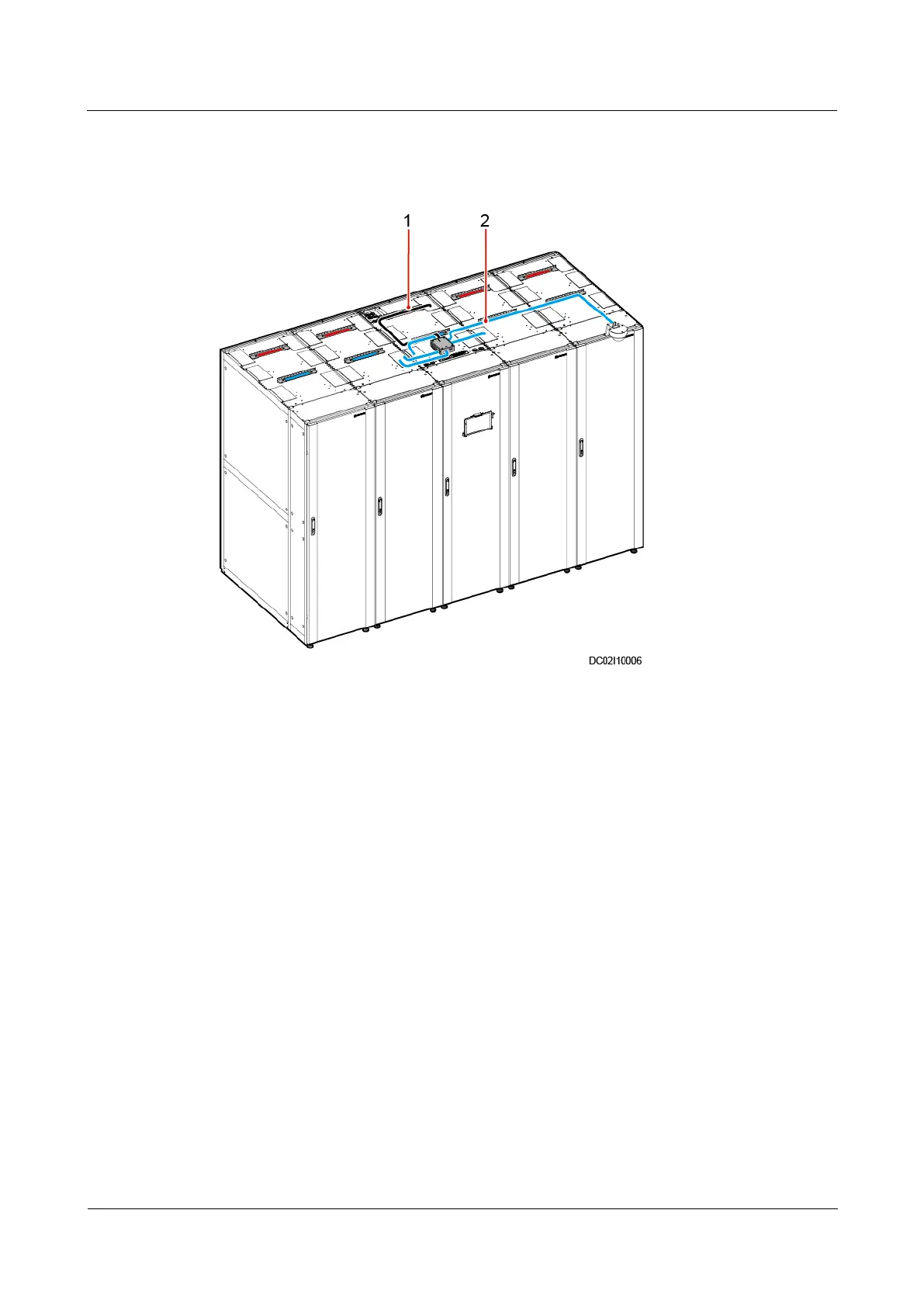

Figure 4-14 Smart ETH gateway cable routes
(1) Power cable
(2) Signal cable
