Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
188
The fingerprint and card reader is connected to the access actuator by a network cable.
Step 5 Check that cables are correctly connected.

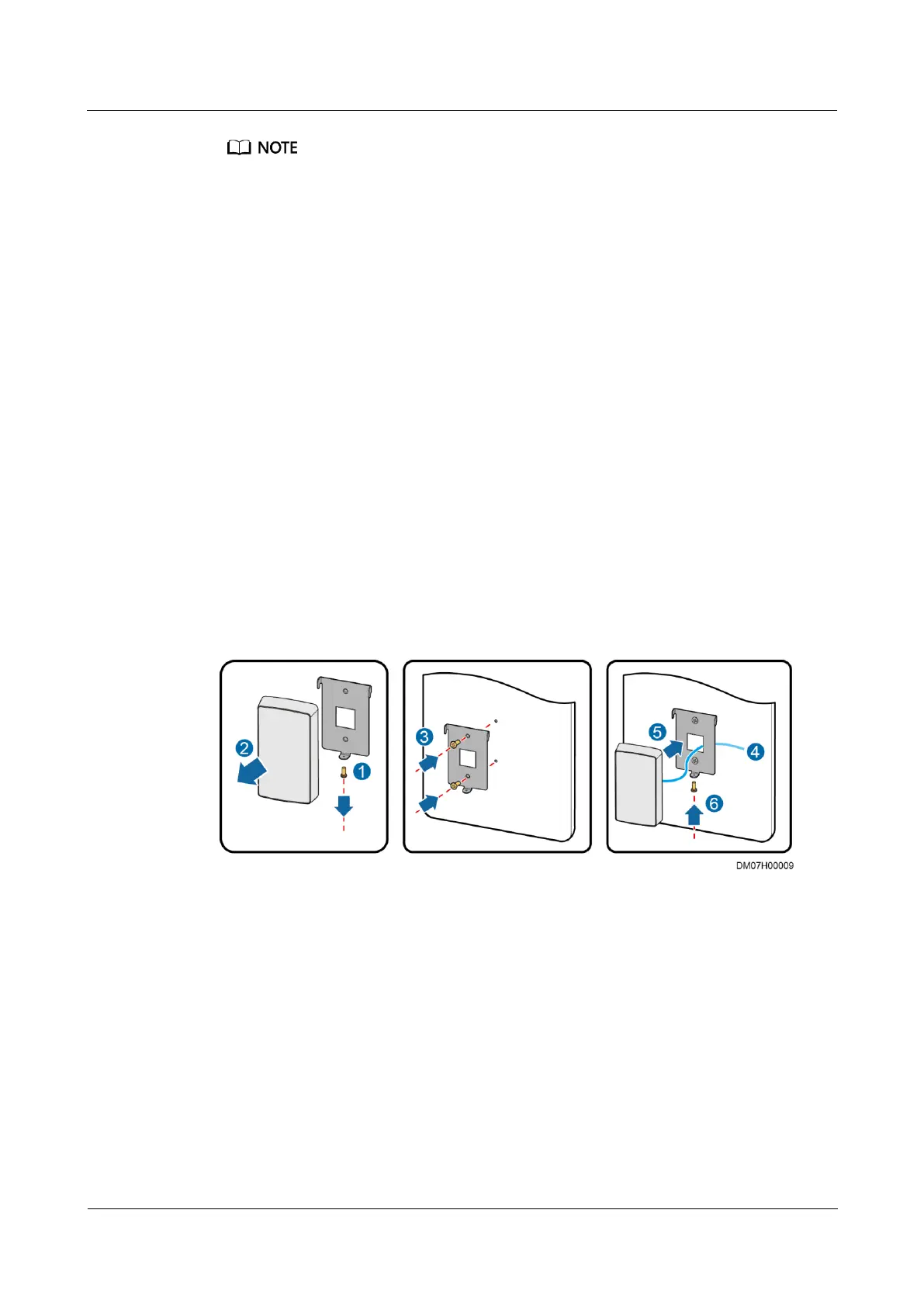

Step 6 Secure the fingerprint and card reader to the baseplate, as shown by (5) and (6) in Figure
3-222.
----End
3.11.18 (Optional) Installing an In-Room Card Reader with a
Keypad
Context

The BOM number of a card reader with a keypad is 02070172.

It is recommended that the device be installed outside a room 1.4-1.6 m above the floor.

Do not install the product in a place with heavy dust or exposed to sunlight.
Procedure
Step 1 Remove the screws (set aside) from the card reader with a keypad and take off the baseplate,
as shown by (1) in Figure 3-224.
Figure 3-224 Installing a card reader with a keypad
Step 2 Mark the mounting holes using a marker, and drill holes using a hammer drill.
