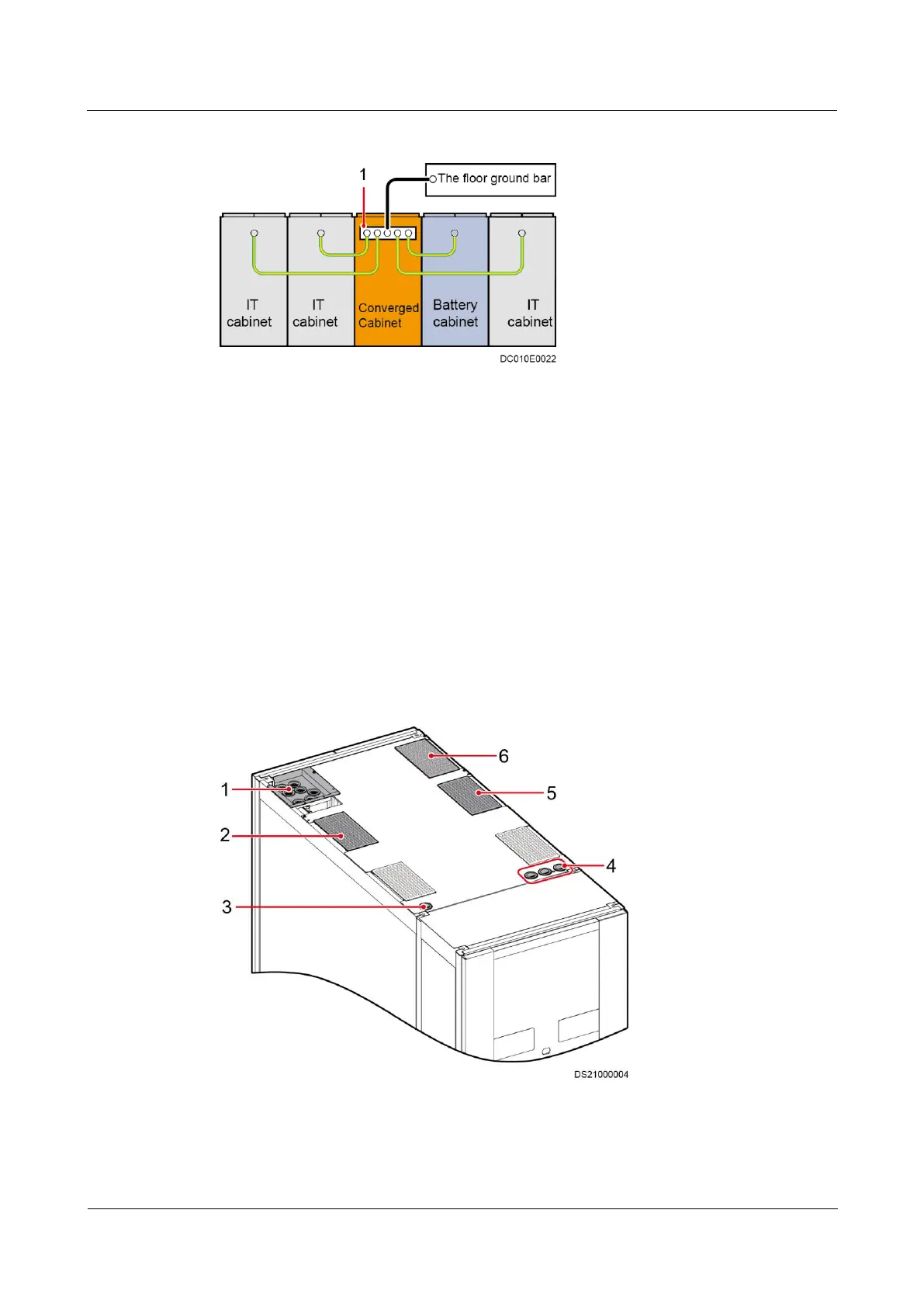

Figure 4-18 Grounding the Smart Module
(1) General ground bar
4.5 Cable Connections to the Power Supply and
Distribution System
4.5.1 Top Cable Routing
4.5.1.1 Cable Routing Description
Figure 4-19 shows the cable holes for routing cables over the top of the Converged Cabinet.
Figure 4-19 Cable holes for routing cables over the top of the Converged Cabinet
(1) Cable holes for smart
cooling product pipes
(2) Signal cable hole
(3) Door status sensor cable
(4) Signal cable holes
