FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

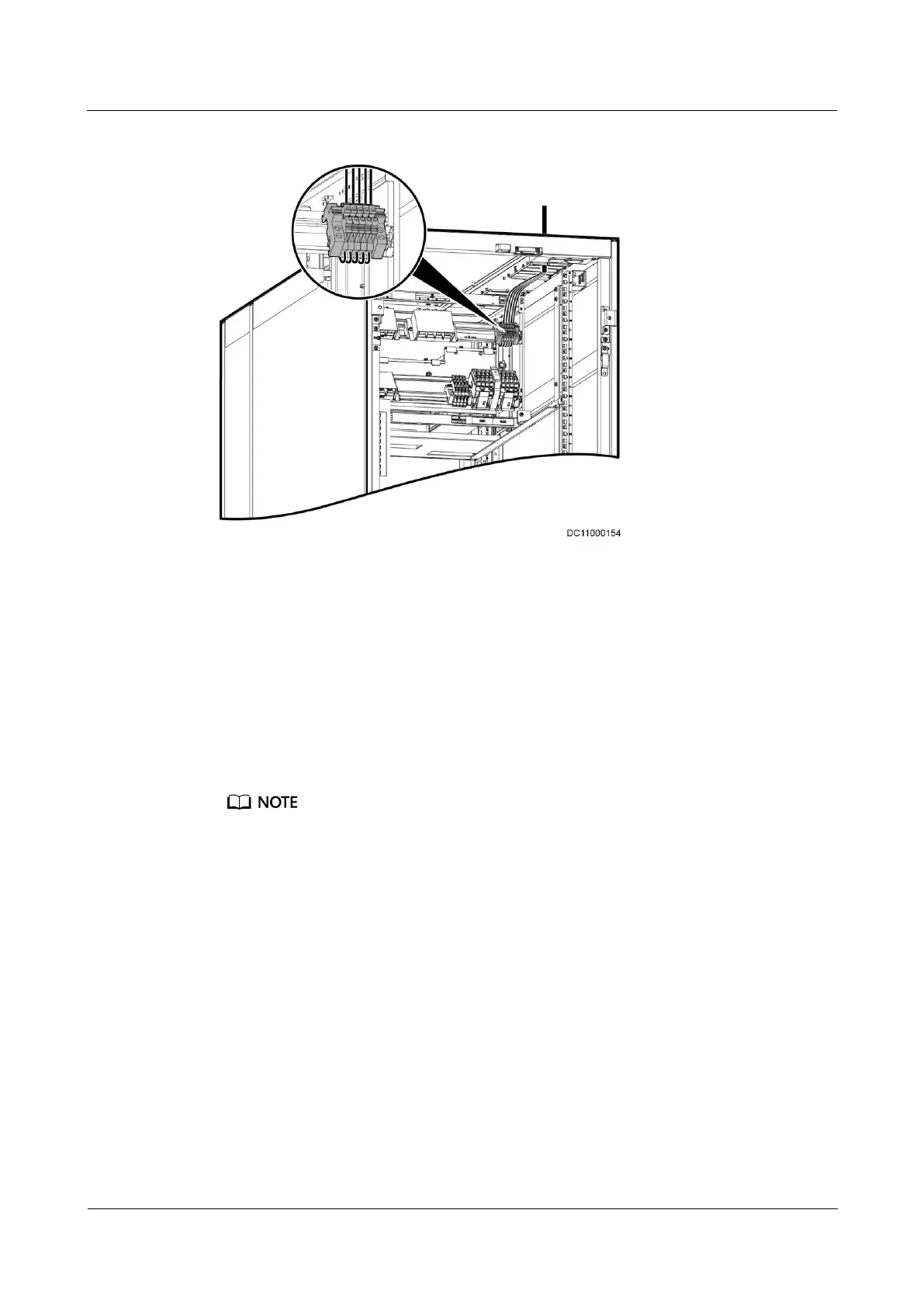

Figure 4-24 Connecting signal cables
----End
4.5.1.3 Connecting Output Power Cables to the Converged Cabinet
Context
The Converged Cabinet has multiple configurations. This section describes how to connect
output power cables to different types of power distribution subracks in the Converged
Cabinet.
For detailed cable connection positions in the Converged Cabinet, see the Cable Connection
Diagram.
The power distribution subrack position in the cable connection description is for reference only.
The actual position prevails.
Before connecting the IT output power cable in the BC1 scenario, select an appropriate length
of cable and crimp the terminal based on the actual position of the power distribution subrack.
Crimp a cord end terminal on the live wire, as shown in Figure 4-25.
Crimp an OT terminal on the PE wire and neutral wire, as shown in Figure 4-26.
