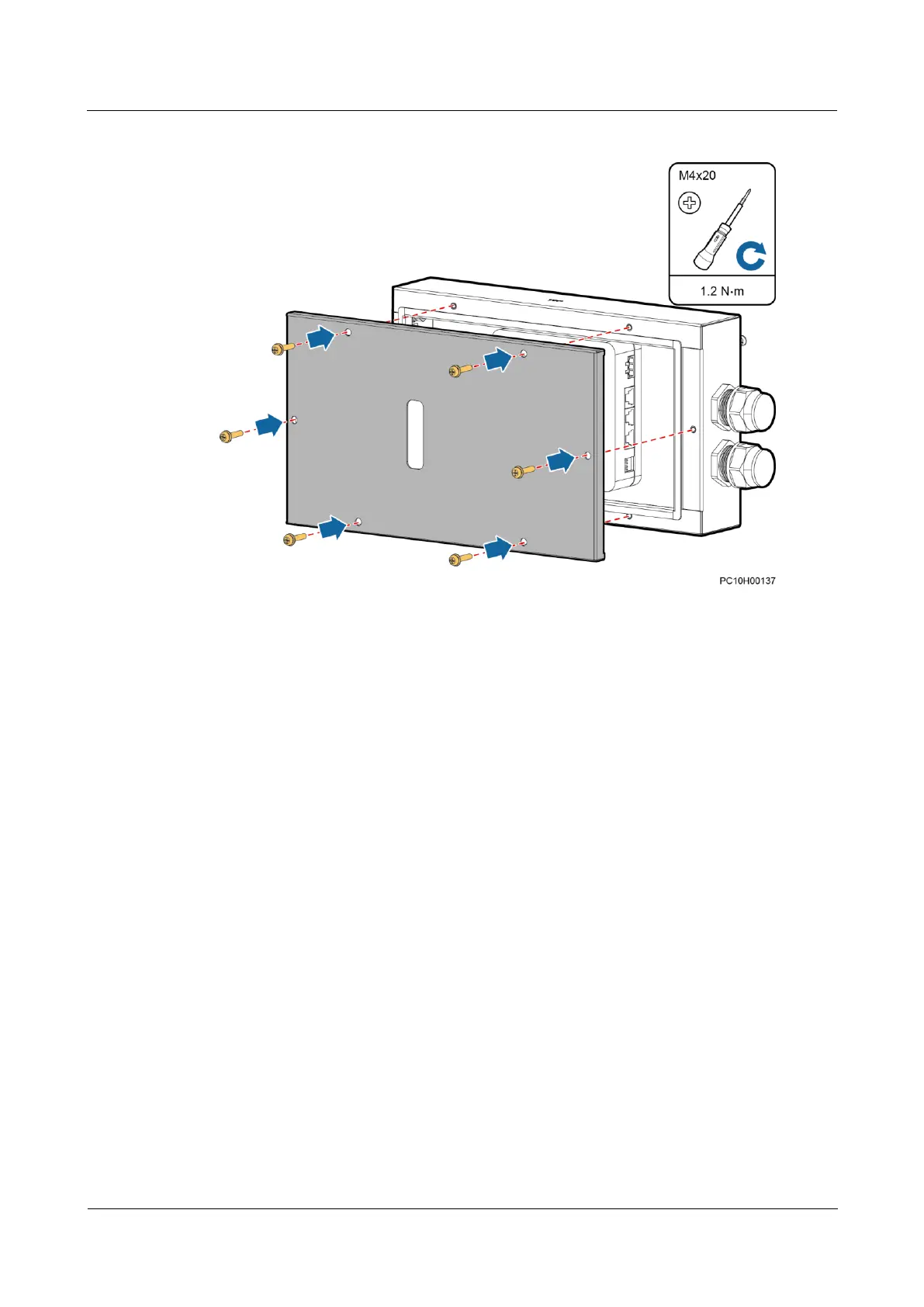

Figure 3-208 Reinstalling the waterproof box cover
----End
3.11.14 (Optional) Installing an In-Room Double Door Magnetic
Lock
Prerequisites

Verify that the room door is a revolving double-swing wooden door, and that the door
frame is wider than 42 mm.

The cable routes are planned.
Context

The BOM number of a double door magnetic lock is 02070261.

A double door magnetic lock is installed on a room door.
Procedure
Step 1 Fold the delivered cutout template along the dotted line by 90°, as shown by (2) in Figure
3-209.
Step 2 Close the door, place the cutout template near the door top at the far end of the door axis,
mark the mounting holes, and drill holes, as shown in Figure 3-209.
