FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

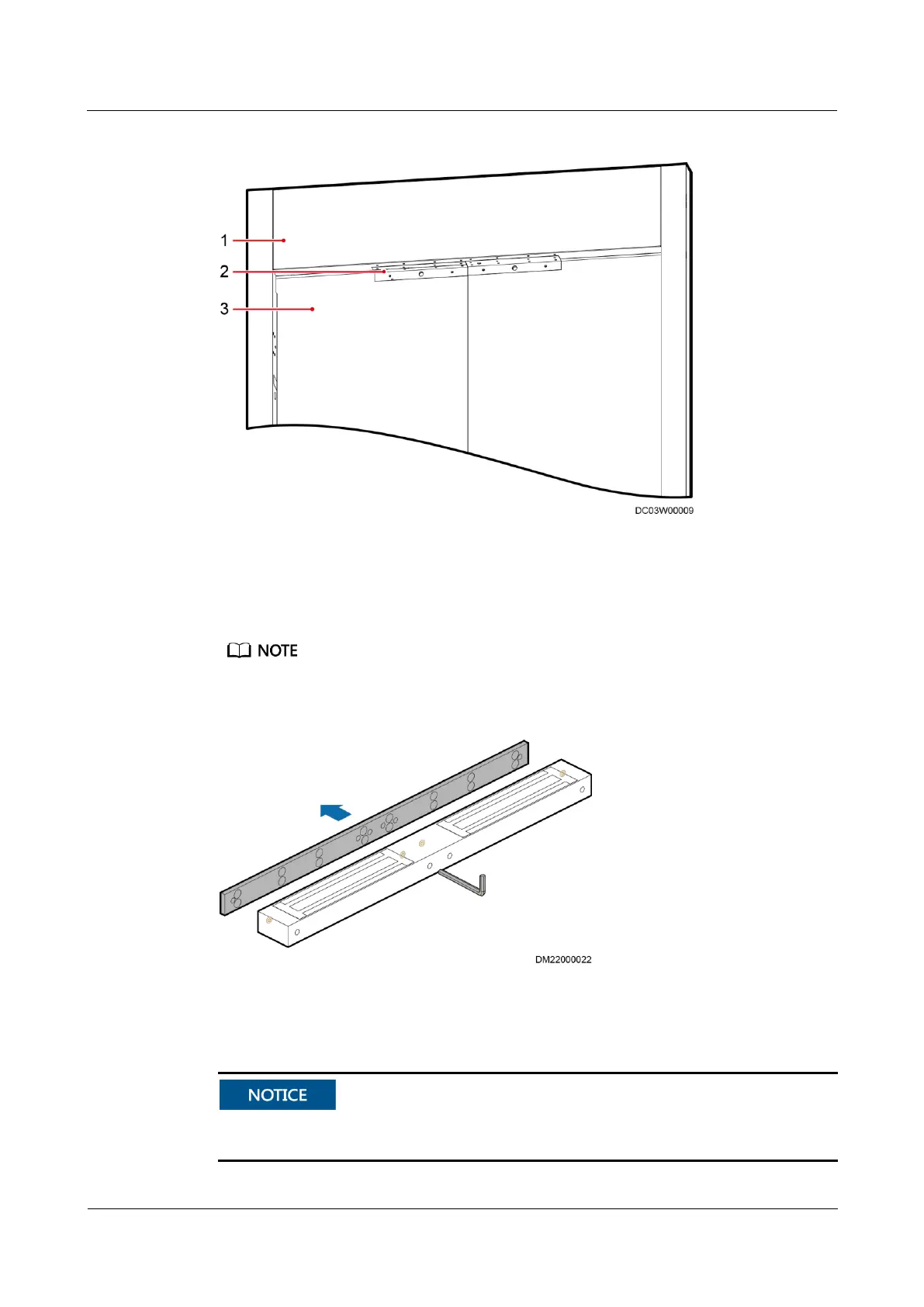

Figure 3-209 Marking mounting holes
Step 3 Remove the hoisting strip using the delivered hex key.
Four hex socket screws need to be removed in this step.
Figure 3-210 Removing the hoisting strip
Step 4 Secure the hosting strip using the delivered screws, as shown by (1) in Figure 3-211.
Pay attention to the direction of the hoisting strip, and ensure that the bulging surface of the
magnetic lock faces the magnet.
To Next Page
