FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

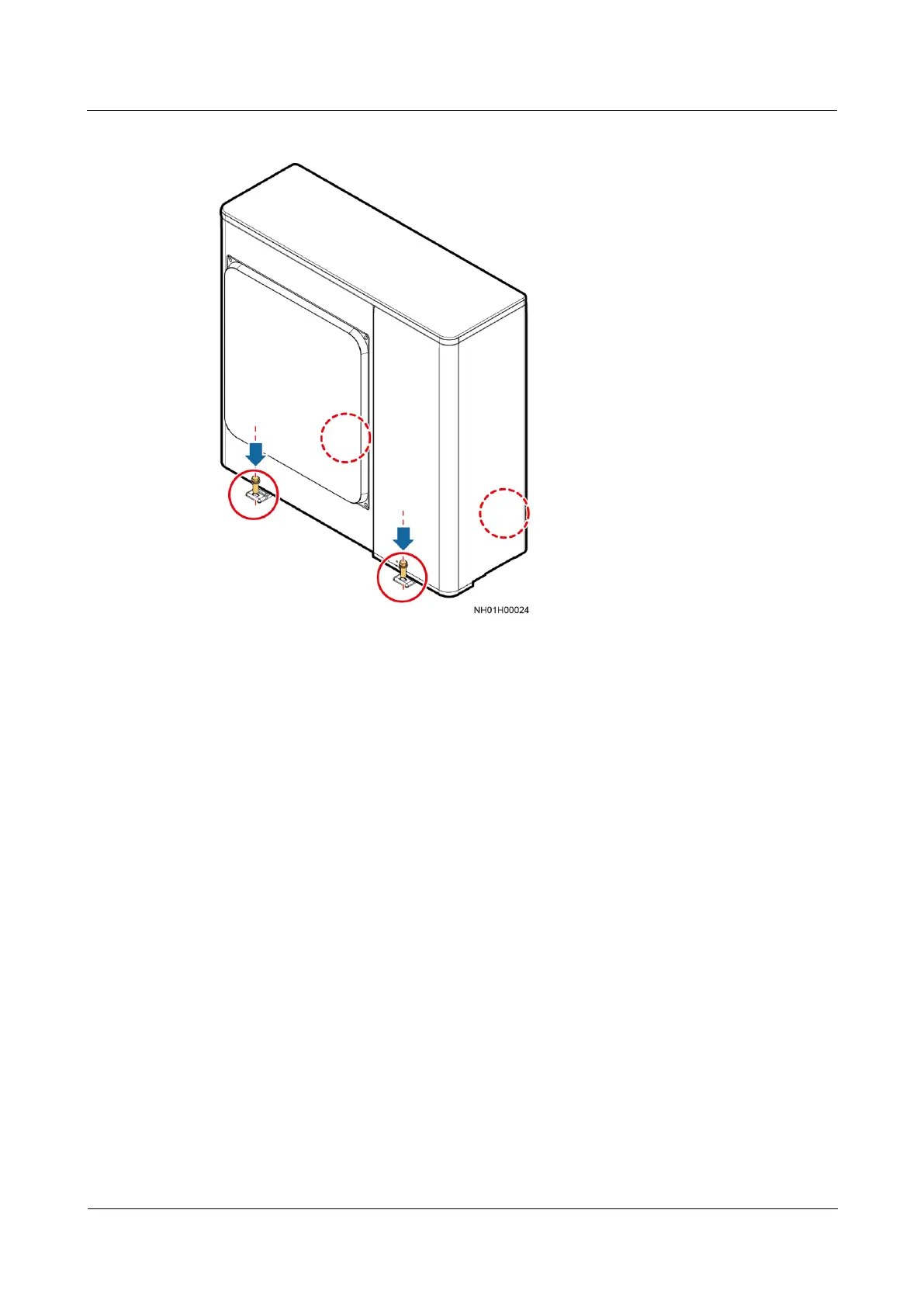

Figure 3-49 Installing an outdoor unit
----End
3.7.5 Exhausting Nitrogen from the Indoor Unit
Context
Nitrogen is exhausted from the indoor unit through both the gas pipe needle valve and liquid
pipe needle valve of the indoor unit stop valve. Figure 3-50 shows a smart cooling product
stop valve.
