FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

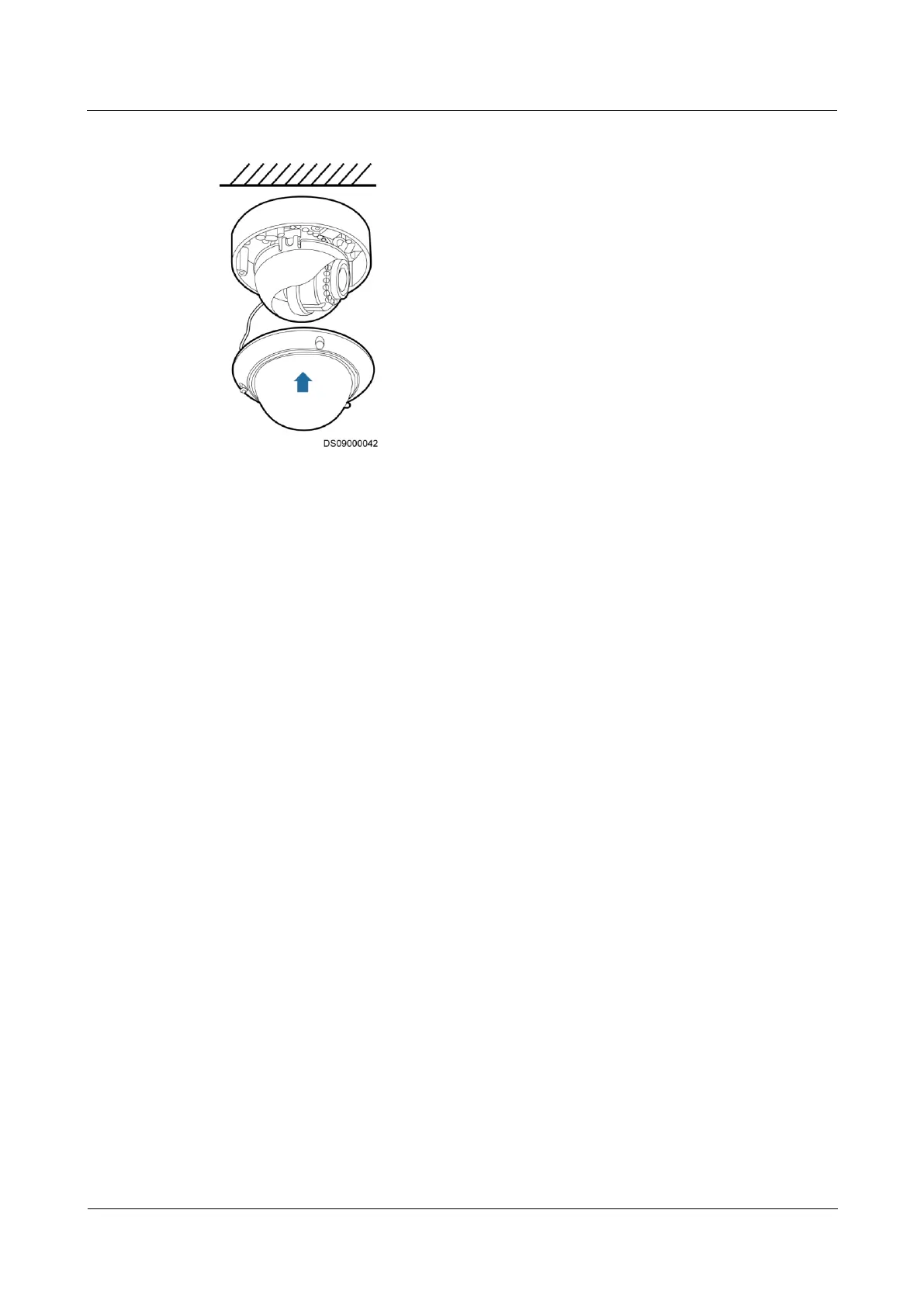

Figure 3-185 Installing a front cover
----End
3.11.9 Installing a Smart ETH Gateway
If a smart ETH gateway is configured, perform the following steps to install it.
Prerequisites
Smart ETH gateways, guide rails (delivered with smart ETH gateways), screws, and
other installation accessories are available.
The number and installation positions of smart ETH gateways have been determined.
Context
A smart ETH gateway can be installed in the following two positions based on the project
conditions:
If the M-shaped cable troughs are deployed for the smart module, install the smart ETH
gateway on the M-shaped cable trough on the top of the Converged Cabinet.
