FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.
If two smart ETH gateways are configured, install them in positions shown in Figure
3-186.
If three smart ETH gateways are configured, install two of them in positions shown in
Figure 3-186, and install the remaining one on the M-shaped cable trough of an adjacent
cabinet.

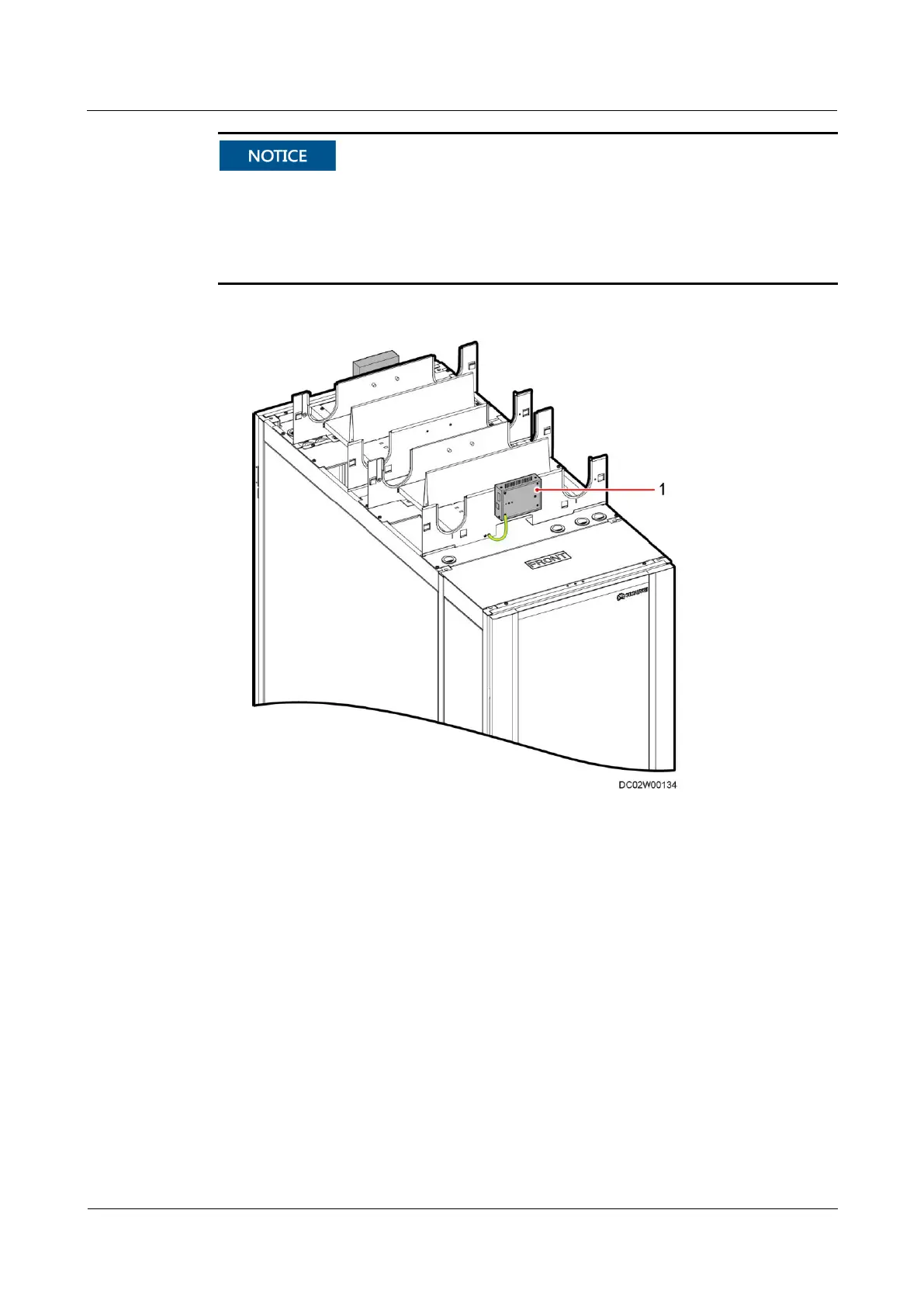

Figure 3-186 Position 1 for installing a smart ETH gateway
If M-shaped cable troughs are not deployed for the Smart Module, install the smart ETH
gateway on the top of the Converged Cabinet, as shown in Figure 3-187.
