FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

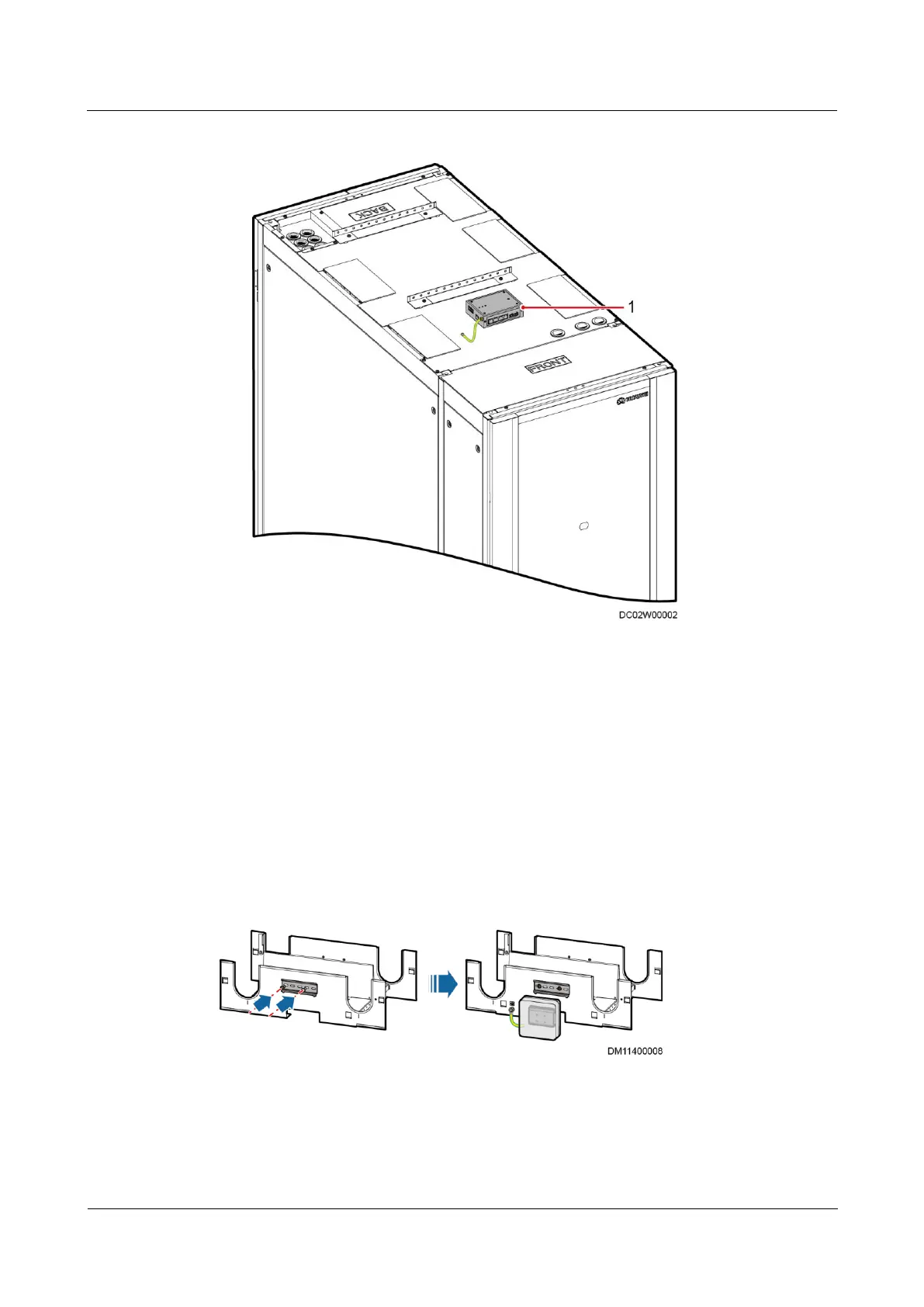

Figure 3-187 Position 2 for installing a smart ETH gateway
The methods for installing a smart ETH gateway on the two positions are similar. This section
describes how to install a smart ETH gateway on the M-shaped cable trough.
Procedure
Step 1 Secure the guide rails for a smart ETH gateway to the M-shaped cable trough on the top of the
Converged Cabinet using two M4 screw assemblies, as shown in Figure 3-188.
Step 2 Install the smart ETH gateway to the guide rail, as shown in Figure 3-188.
Figure 3-188 Installing a smart ETH gateway
1. Align the upper slot of the guide rail for the smart ETH gateway with the upper part of
the guide rail, and pre-mount it onto the guide rail.
