FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Copyright © Huawei Technologies Co., Ltd.
181

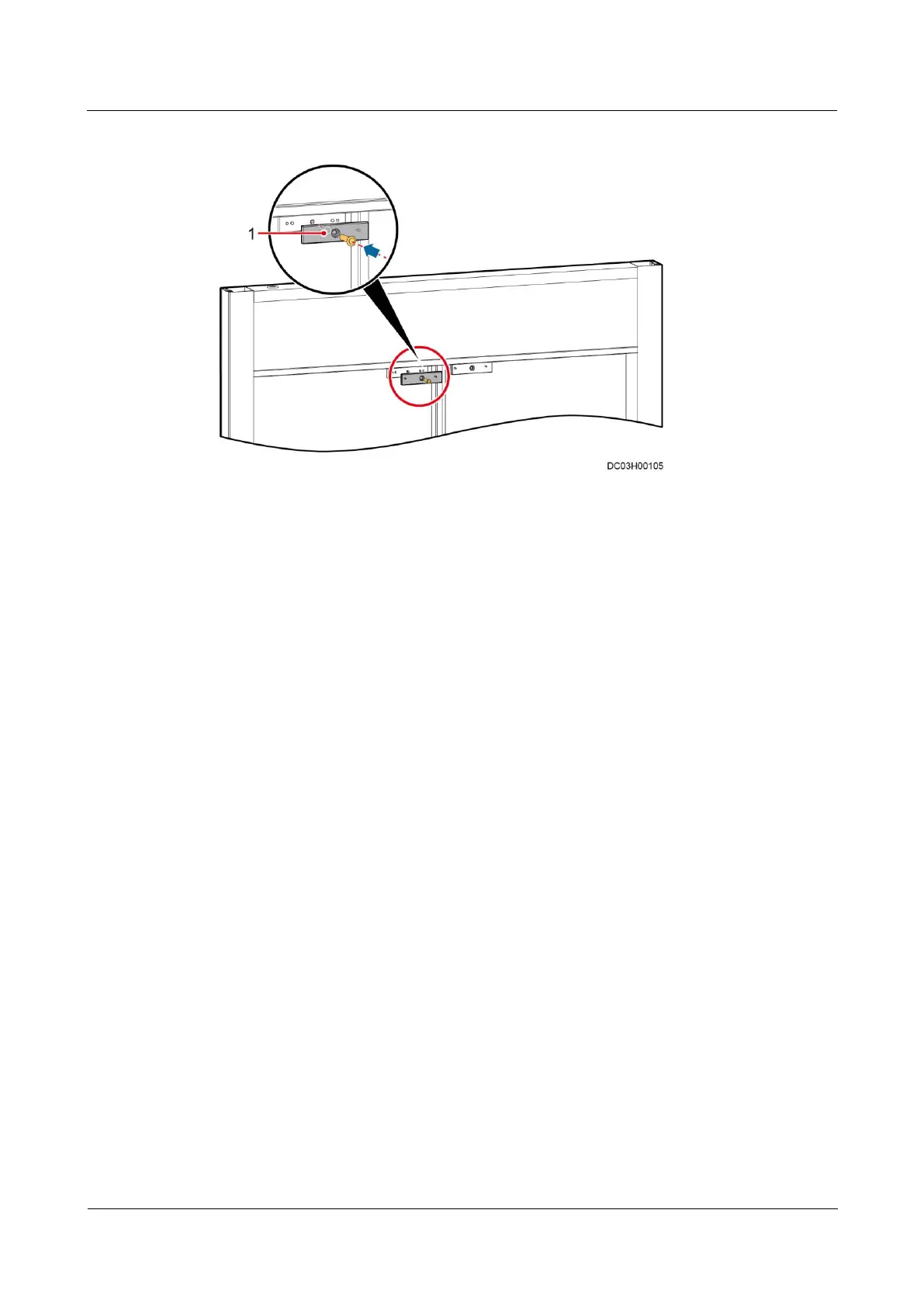

Figure 3-213 Installing the magnet
(1) Rubber pad
Step 7 (Optional) Adjust the magnet.
1. If the magnet cannot attract the door properly after power-on, place a magnetized metal
part near the magnet to check whether the magnet provides a proper magnetic force.
2. If the magnetic lock and the magnet do not work properly, check and troubleshoot the
circuit.
----End
3.11.15 (Optional) Installing an In-Room Single Door Magnetic
Lock
Prerequisites
Verify that the room door is a revolving single-swing wooden door, and that the door
frame is wider than 42 mm.
The cable routes are planned.
Context
The BOM number of a single door magnetic lock is 02070081.
A single door magnetic lock is installed on a room door.
Procedure
Step 1 Fold the delivered cutout template along the dotted line by 90°, as shown by (2) in Figure
3-214.
Step 2 Close the door, place the cutout template near the door top at the far end of the door axis,
mark the mounting holes, and drill holes, as shown in Figure 3-214.
