Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
4 Cable Routing
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
226
4.6.8 (Optional) Connecting Cables for the In-Room Access
Control System
Prerequisites

The required cables have been prepared.

It is recommended that cables of the in-room access control system be routed through a
trough in a wall.
Cables installed on the surface of a wall need to be routed through a pipe for protection.
Context

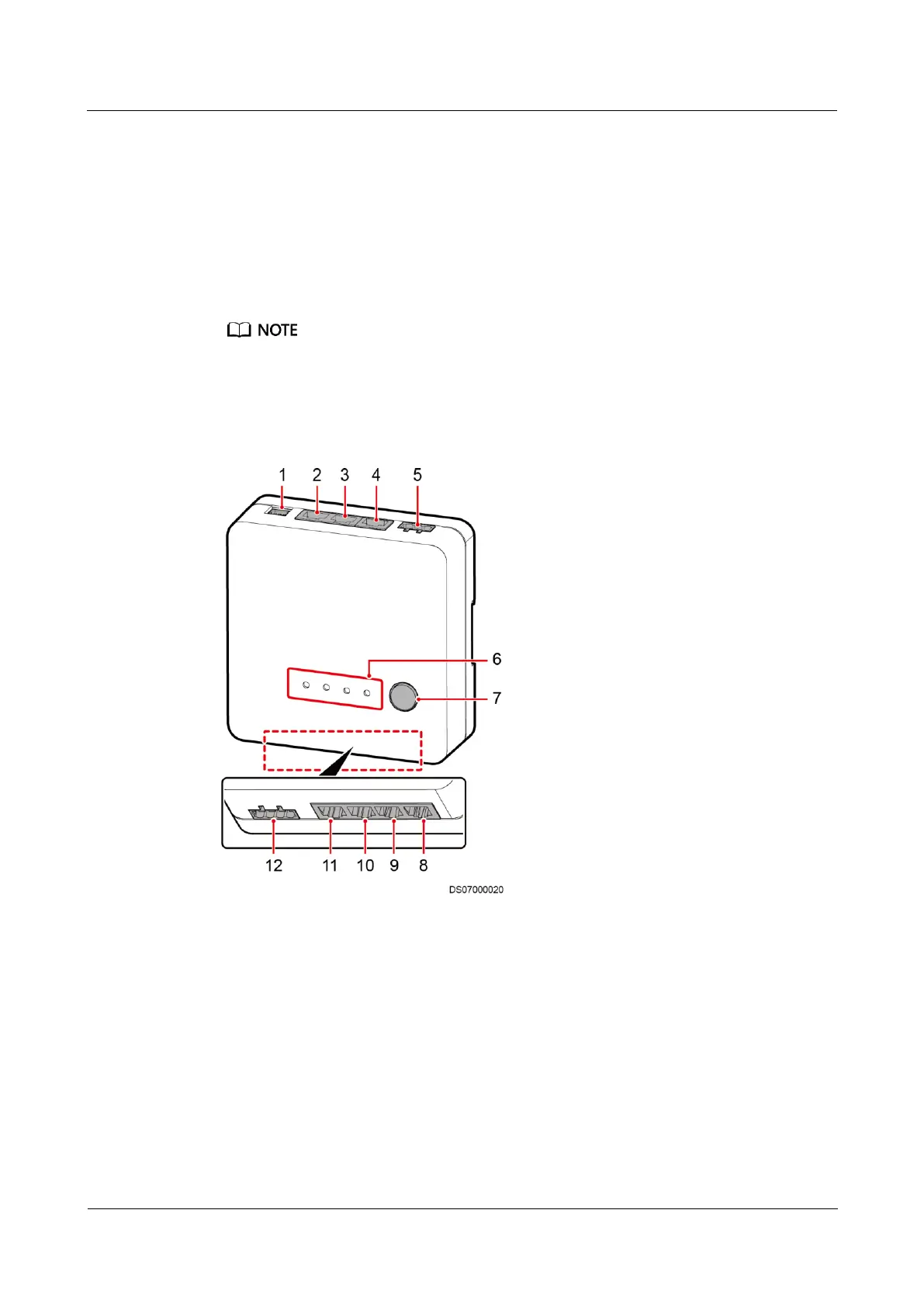

Figure 4-43 Description of ports on the access actuator
(1) 48 V power
port
(2) PoE port
(3) RS485 port (COM2)
(4) RS485 port
(COM1)
(5) Address DIP
switch
(6) Status indicator
(7) BLINK
button
(8) WG_2
Wiegand interface
(9) WG_1 Wiegand interface
(10) AI/DI_2
dry contact
(11) AI/DI_1 dry
contact
(12) LOCK/GND/GATE/COM/door status sensor
and magnetic lock port
