FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

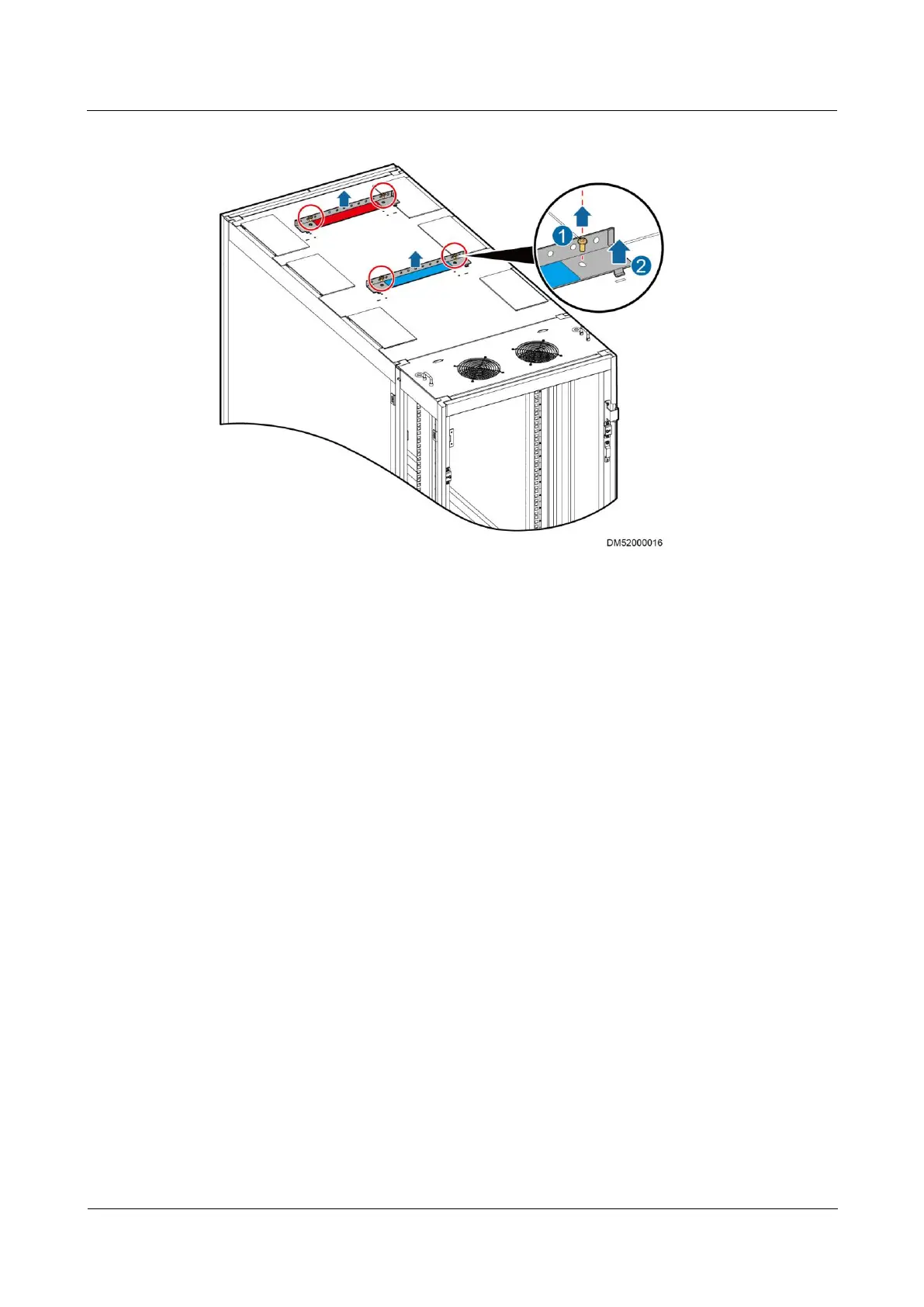

Figure 3-100 Removing a binding plate
Step 2 Remove other binding plates in the same way.
----End
3.10.2 Installing a 600 mm Wide Cable Trough
Context
Install two 600 mm wide cable troughs on the top of every 600 mm wide cabinet. When
installing cable troughs, first install two cable troughs at the top of the end cabinet, and then
install the other cable troughs at the top of other cabinets along the aisle in sequence.
Figure 3-101 shows a 600 mm wide cable trough. Its BOM number is 21501142.
