Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
117

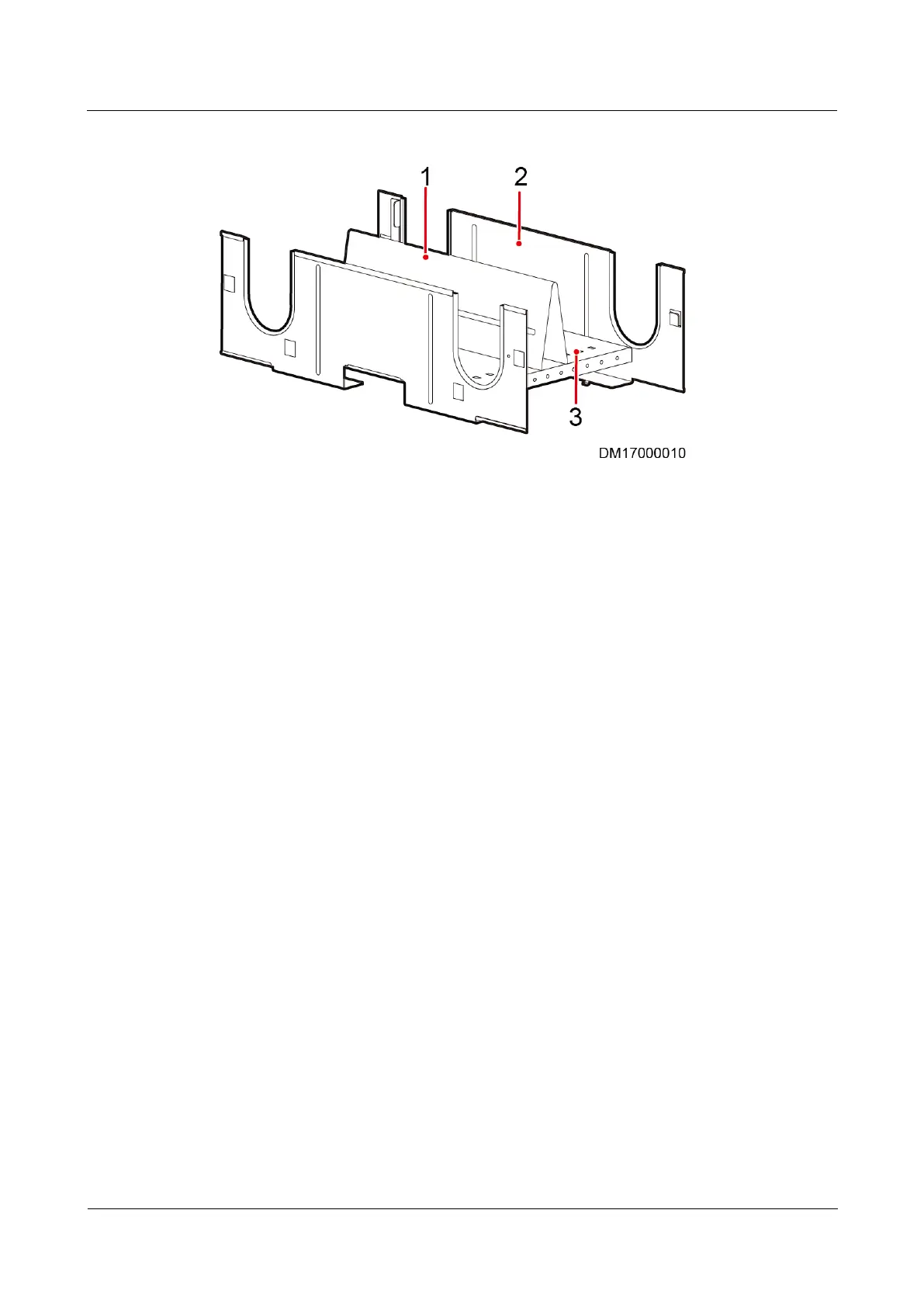

Figure 3-101 600 mm wide cable trough
(1) Partition plate
(2) Side panel
(3) Supporting
plate
When installing cable troughs, be aware of PDU2000 cables at the top of the cabinet:

After cable troughs above the front and rear doors are installed, place the PDU2000
cables in the cable trough above the rear door.

After PDU2000 cables are placed, bind the cables to the cable trough using cable ties.

Install cable troughs based on the colors of binding plates at the cabinet top. Install
strong-current power cable troughs at red binding plates and weak-current power cable
troughs at blue binding plates.
Procedure
Step 1 Keep a vertical plate of the cable trough flush with the top surface of the cabinet and clamp
the clasps into the square holes in the first row counting from the front door to the rear door,
as shown in Figure 3-102.
