FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

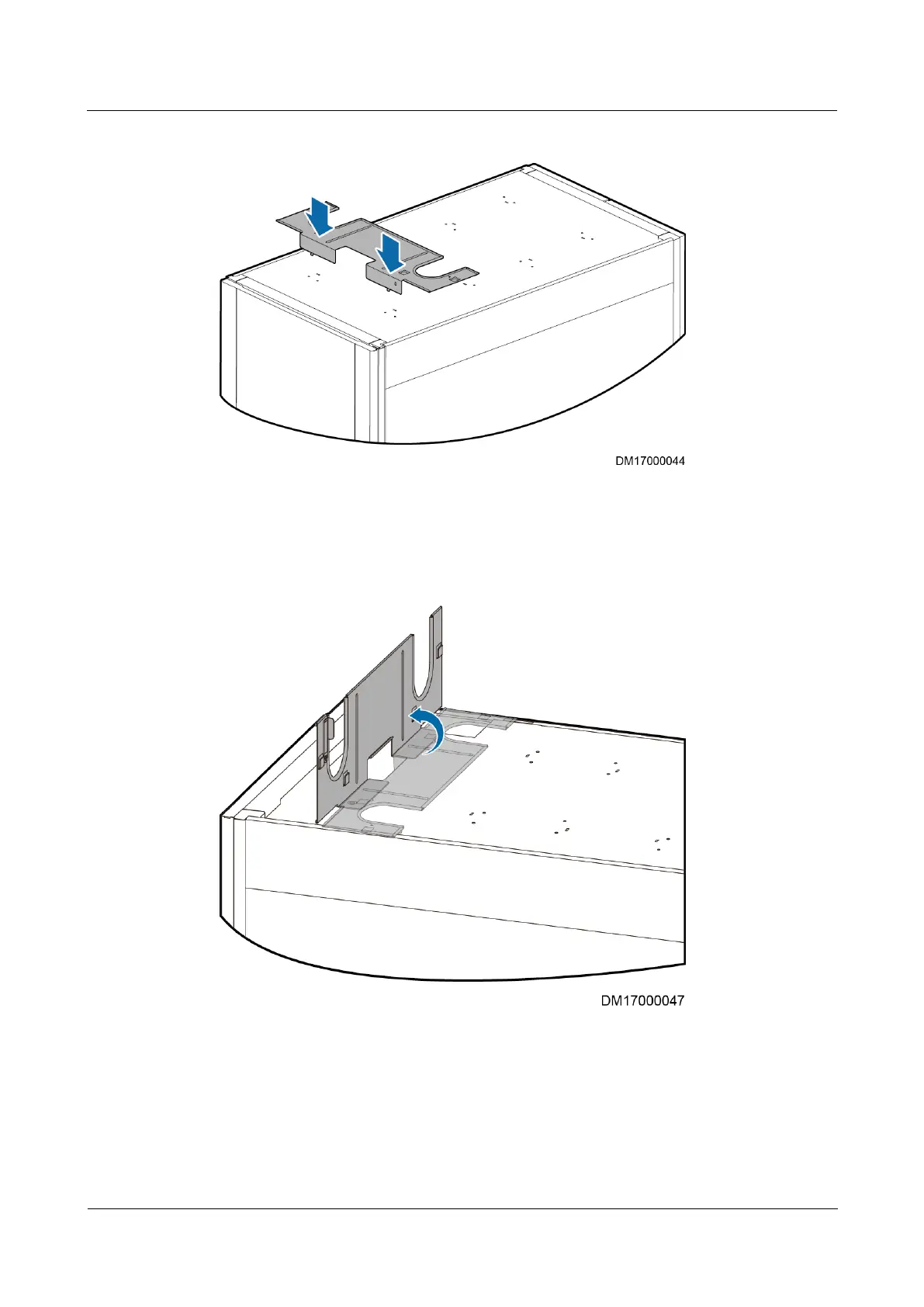

Figure 3-102 Clamping a vertical plate
Step 2 Rotate the vertical plate by 90 degrees to stand it on the top plate of the cabinet, as shown in
Figure 3-103.
Figure 3-103 Rotating the vertical plate by 90 degrees
Step 3 Install the other vertical plate into the mounting hole in the second row counting from the
front door to the rear door in the same way. Tighten one M5x10 tapping screw inside each of
the two vertical plates using a long-handled Phillips screwdriver, as shown in Figure 3-104.
