FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

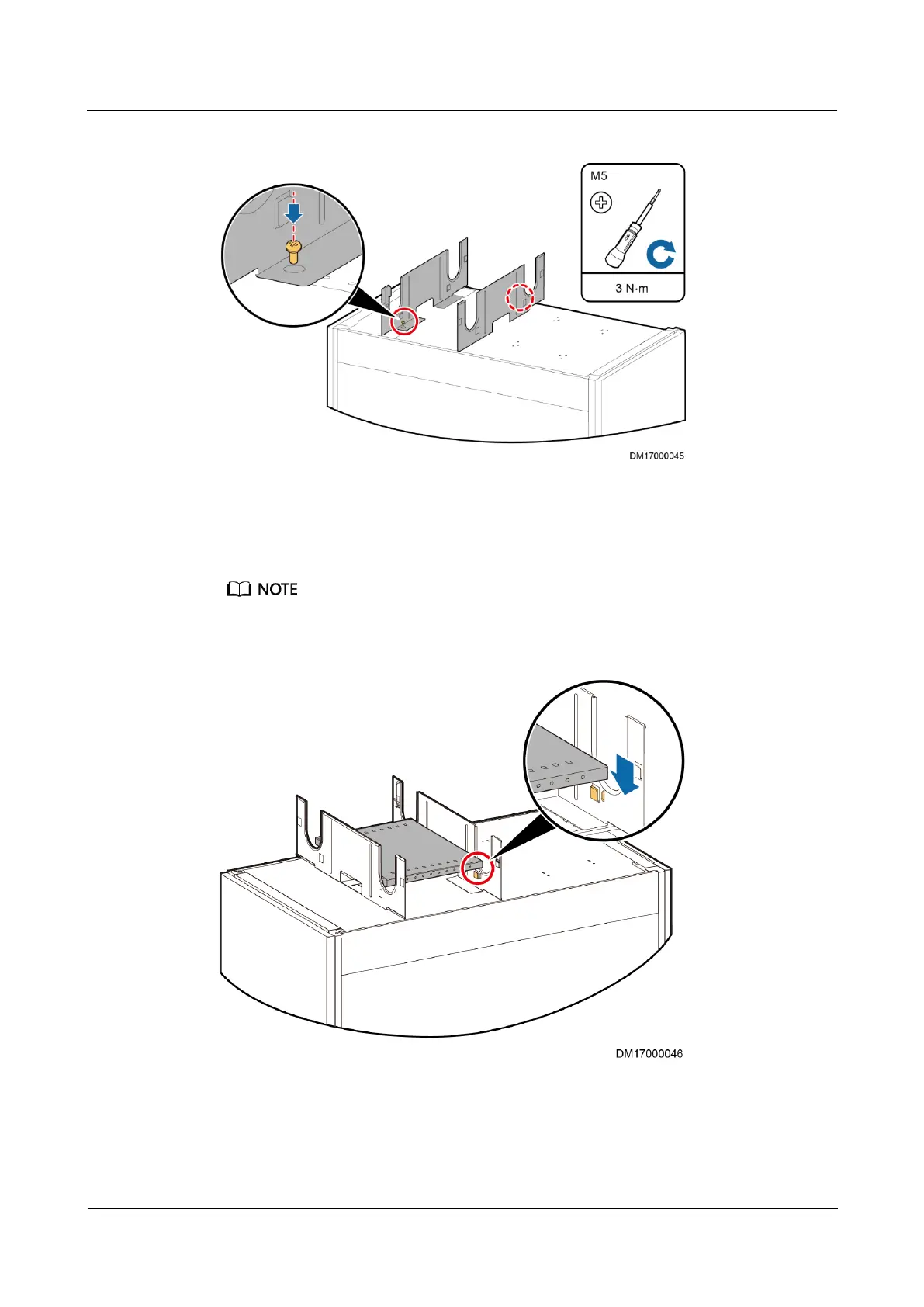

Figure 3-104 Installing the other vertical plate
Step 4 Press a supporting plate along the two vertical plates down to the place between the four
clasps and the cable bridge, as shown in Figure 3-105. Ensure that the supporting plate is fully
into the clasps.
When installing the supporting plate, do not remove the grommet strip on the U-shaped trough.
Figure 3-105 Installing a supporting plate
Step 5 Install a partition plate. Press both sides of the V-shaped partition plate with hands to decrease
the angle to a proper degree, and clamp the clasps at the bottom into the square holes nearly,
