as shown in Figure 3-106. (By default, insert the clasps into the two adjacent square holes in
the middle. In actual conditions, determine the square holes as required.)

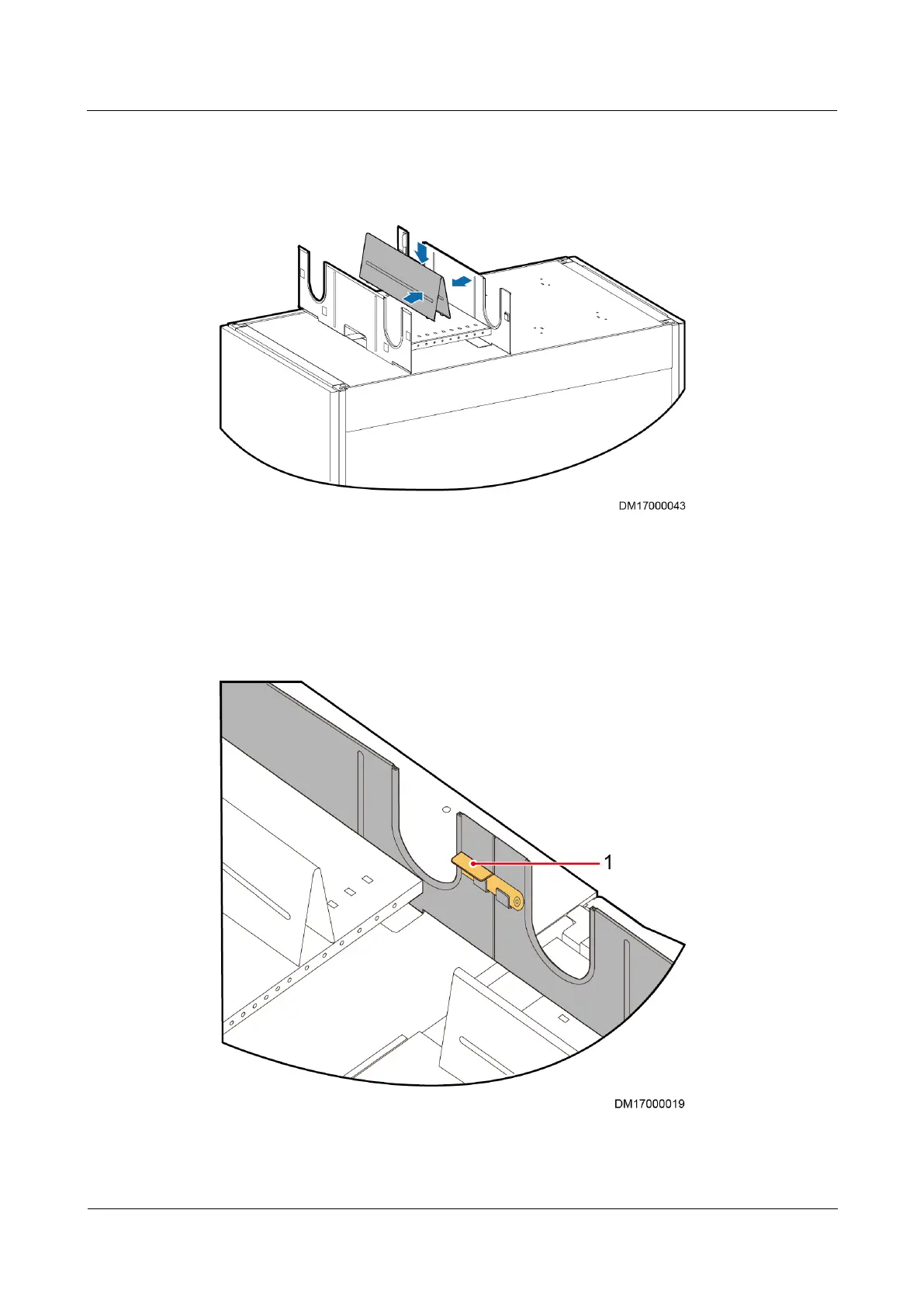

Figure 3-106 Installing a partition plate
Step 6 Install adjacent cable troughs in the same way.
Step 7 Rotate the interconnecting wrench and clamp it into the clasps until the wrench is horizontal,
as shown in Figure 3-107. This operation interconnects the cable troughs.
Figure 3-107 Installing an interconnecting wrench
(1) Interconnecting wrench
