Procedure
Step 1 Remove the covers from the waterproof box and cable holes of the access actuator.
Step 2 Connect cables by referring to Figure 4-44.
1. Connect the smart ETH gateway to the access actuator using a cable.
2. Connect the single/double door magnetic lock to the access actuator using a cable.
3. Connect the access controller to the access actuator using a cable.
4. Connect the exit button to the access actuator using a cable.
5. Connect the emergency door release button to the access actuator using a cable.
6. Connect the emergency door release button to the single/double door magnetic lock
using a cable.

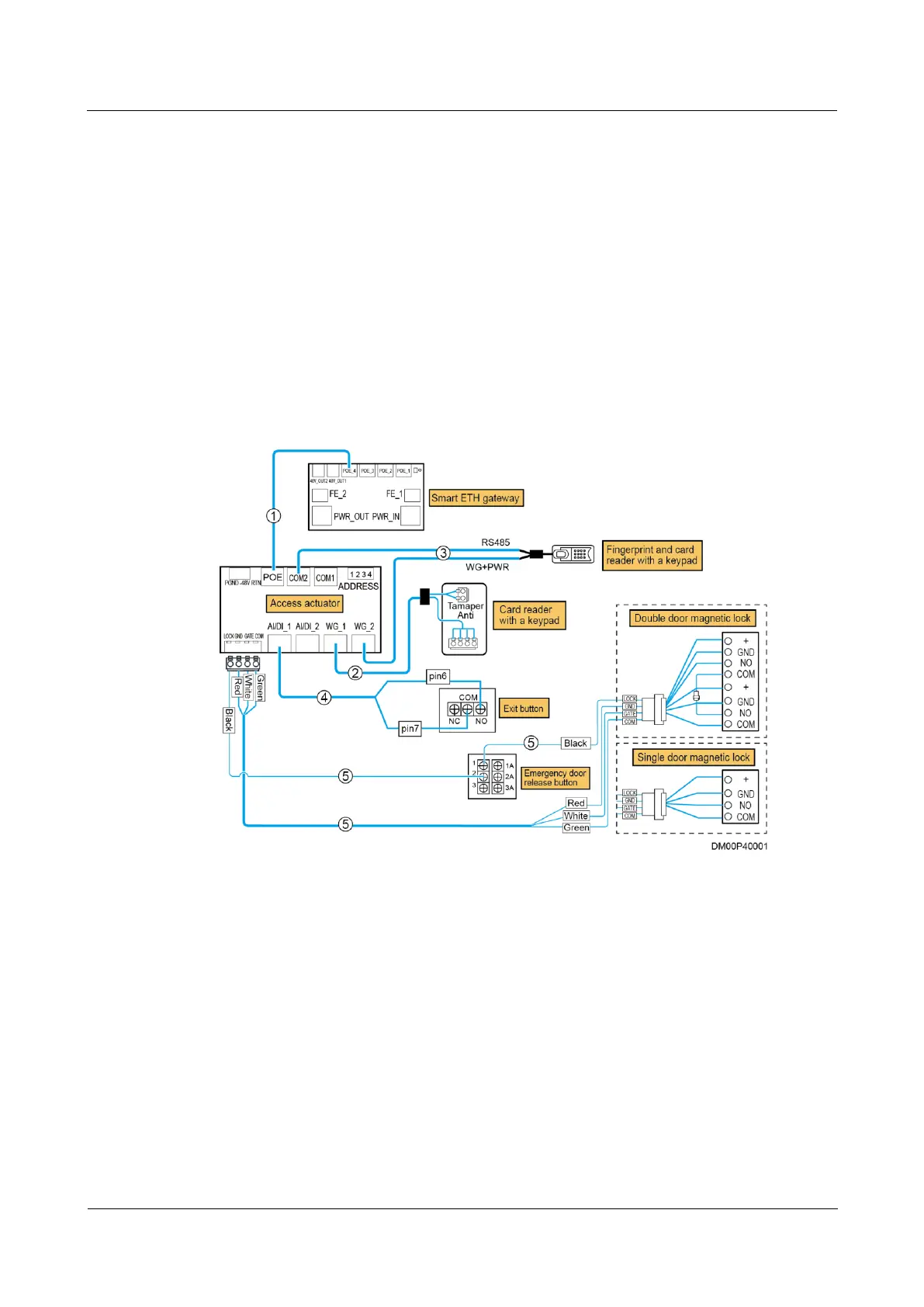

Figure 4-44 Connecting cables for the in-room access control system
(1) Cable BOM number: 04093981-01
(2) Cable BOM number:
04093981-02
(3) Cable BOM number for a fingerprint and card reader:
04093981-03; cable BOM number for a fingerprint and
card reader with a keypad: 04093981-04
(4) Cable BOM number:
04093981-05
(5) Cable BOM number: 04093981-06
Step 3 Reinstall the covers of the waterproof box and cable holes.
----End
