FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
3 Hardware Installation
Copyright © Huawei Technologies Co., Ltd.
46
Use a measuring tape to check that the vertical distance between the top of the 2000 mm
high cabinet and the floor is 2000 mm (+3 mm). Then use a level to check that the cabinet
is level.
To ensure the cabinet steadiness, adjust all the six anchor bolts at the bottom of the cabinet
in place.
Do not remove the anchor bolts. Otherwise, rework is required if the cabinet height does
not meet requirements.
Anchor bolt adjustment method: Wrench an anchor bolt clockwise to elevate a cabinet leg,
or wrench an anchor bolt anticlockwise to lower it. The anchor bolts can be adjusted
within a range of 0-8 mm.
Levelness check standard: Ensure that the cabinet is level in width and depth directions
when leveling the cabinet. Put a level at the bottom of the cabinet in width and depth
directions and check that the air bubble is in the middle between the two lines marked on
the glass tube.

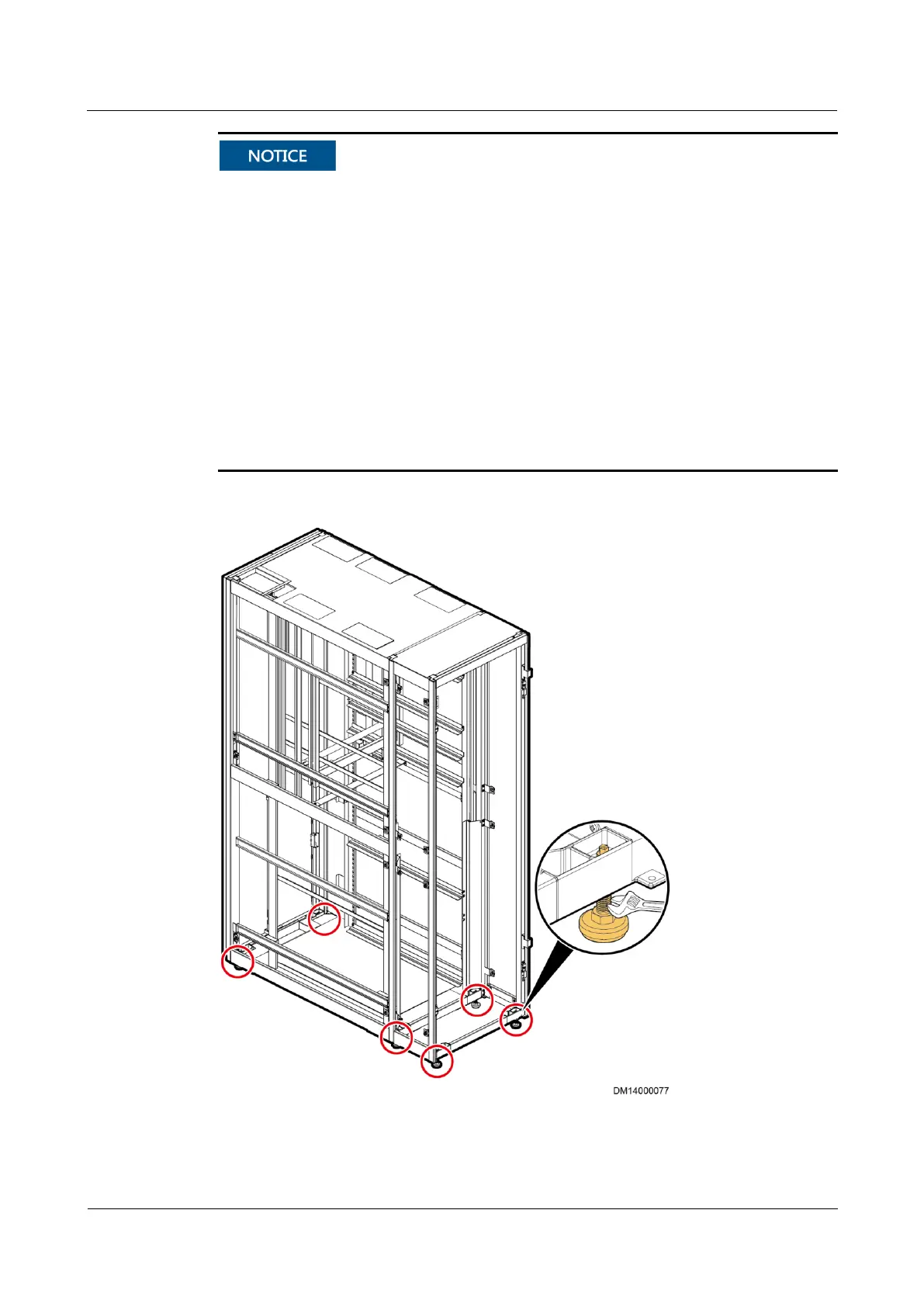

Figure 3-21 Leveling a cabinet
Step 3 Combine cabinets.
