FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.
Procedure
Step 1 Remove the baffle plate from the top of the aisle containment.
Step 2 Install the fan assembly.

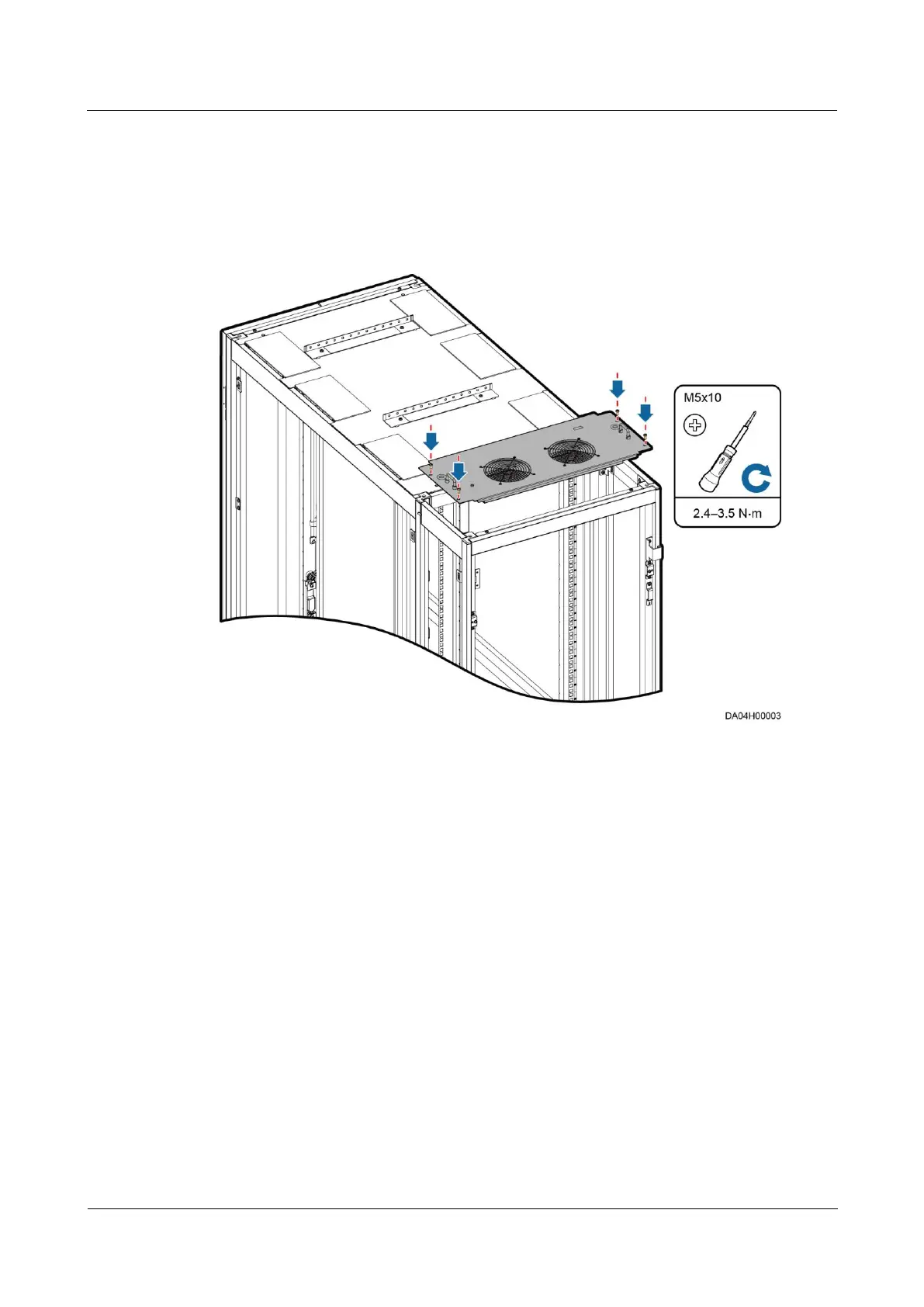

Figure 3-23 Installing a fan assembly
Step 3 Remove the cover from the XT7 terminal block at the rear door of the Converged Cabinet.
