FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

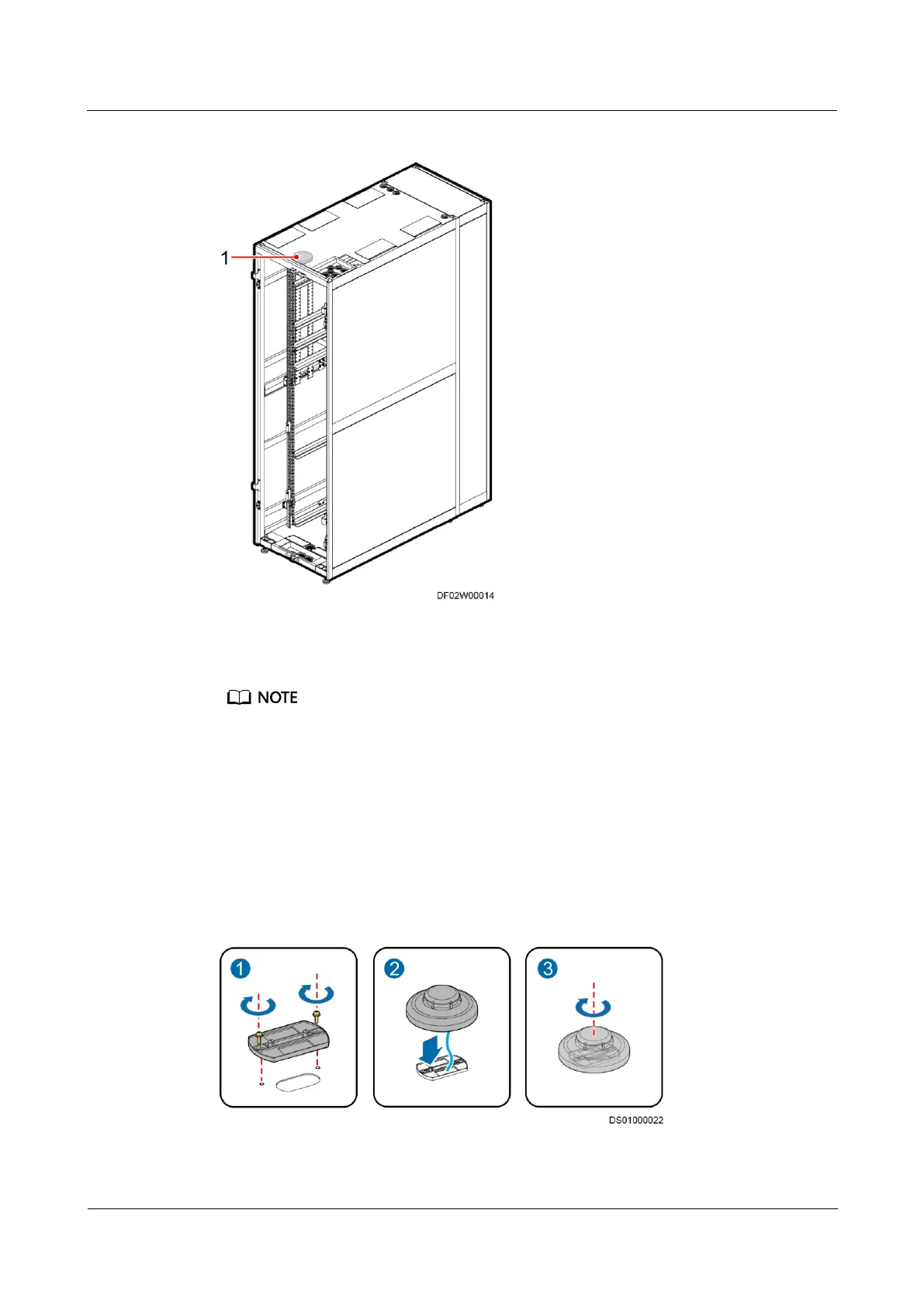

Figure 3-202 Detector positions
The screws for installing the smoke detector are in the Converged Cabinet fitting bag.
Procedure
Step 1 Secure the smoke detector base to the mounting bracket at the top of the cabinet.
Step 2 Route the smoke detector cable through the cable hole in the base.
Step 3 Align the mounting holes in the smoke detector with those in its base, and then rotate the
smoke detector until it is secured.
Figure 3-203 Installing a smoke detector
