FusionModule800 Smart Small Data Center

Installation Guide (Six Fans)

6 Power-On Commissioning

Issue 10 (2019-12-20)

234

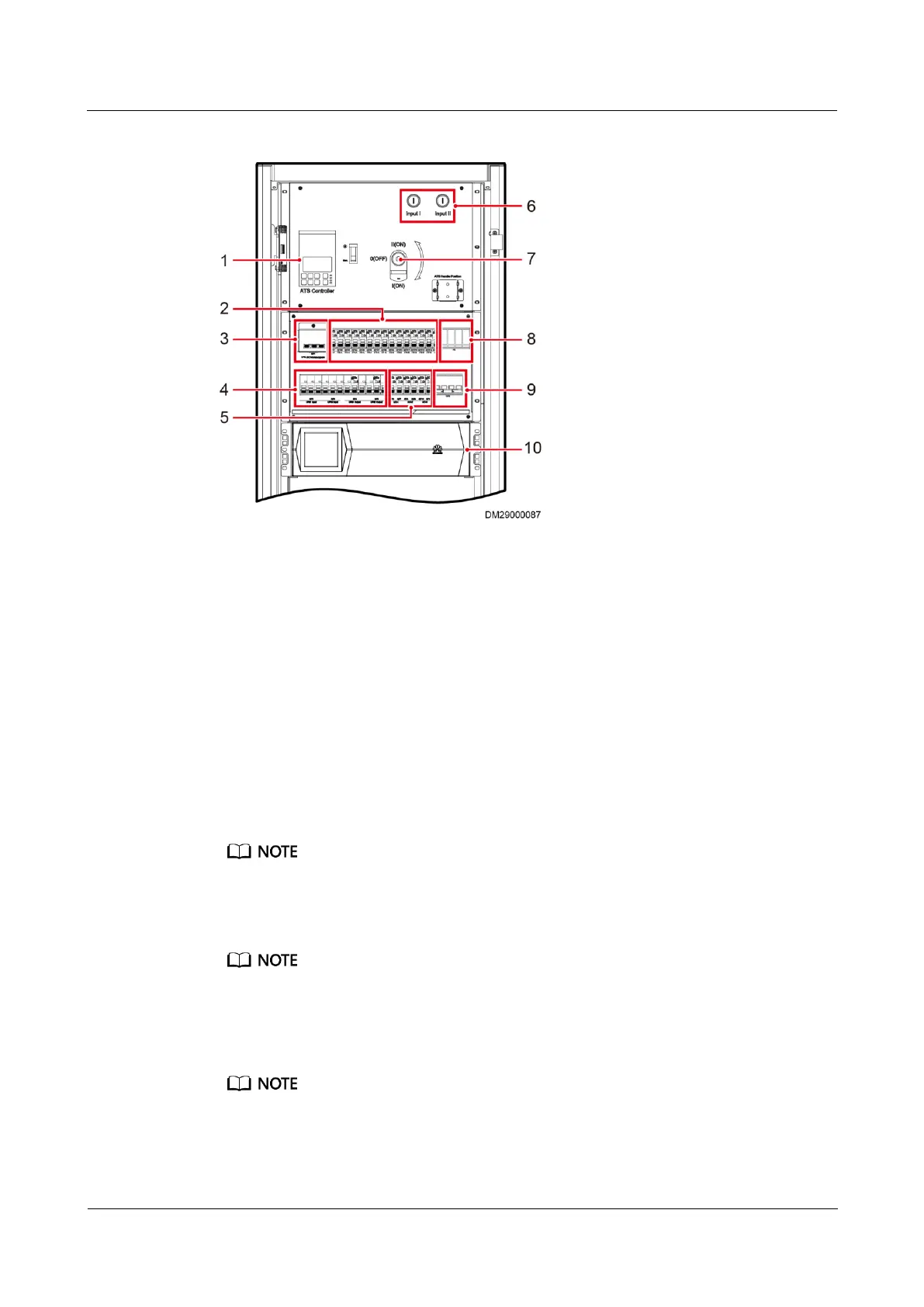

Figure 6-1 Circuit breakers on the front panel of the Converged Cabinet

(1) ATS controller

(2) IT output circuit breakers

(3) UPS maintenance bypass

circuit breaker

(4) UPS input and output

circuit breakers

(5) Smart cooling product

output circuit breakers

(6) General power input

indicator

(7) ATS handle

(8) Surge protective device

(SPD)

(9) SPD circuit breaker

(10) UPS2000-G

Procedure

Step 1 Switch on all SPD circuit breakers.

If the surge protection module indicator is green, the SPD is running properly. If the surge protection

module indicator is red, the surge protection module is faulty and must be replaced immediately.

Step 2 Switch on the power input circuit breaker outside the cabinet to power on the cabinet.

If the green power indicator on the cabinet front panel lights up, the cabinet is powered on properly.

Step 3 (Optional) Press the Auto button on the ATS controller.

Step 4 Close the UPS input switch.

If the 10 kVA UPS is configured, turn on the UPS input switch on the UPS rear panel.

Step 5 Set UPS parameters.
