Huawei FusionModule800

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
A Appendix
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
277

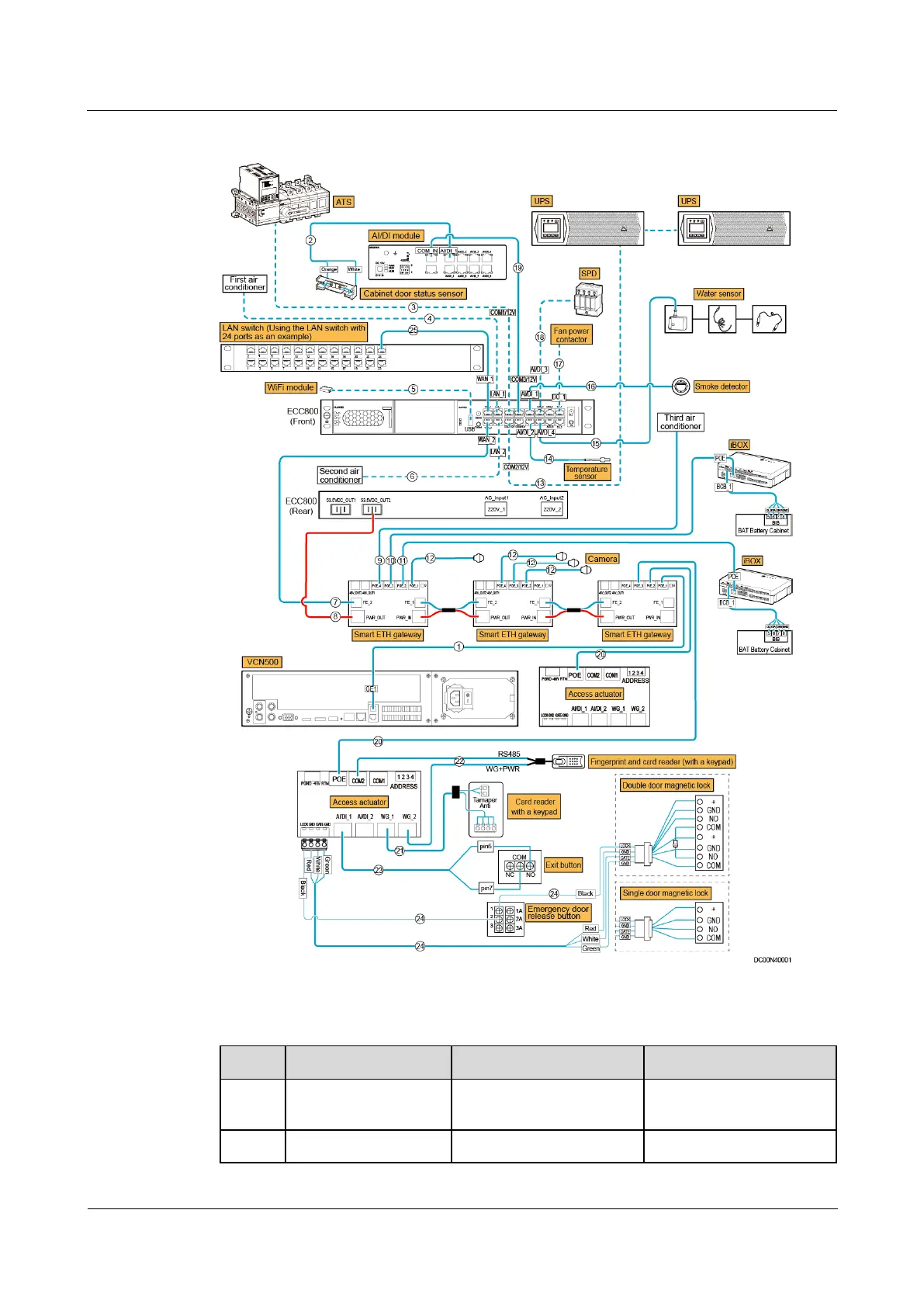

Figure A-3 Cable connections to the management system
Table A-1 Description about the management system cable connections
No.
From
To
Remarks
1
GE1 port on the VCN
PoE_1 port on the smart
ETH gateway
Connected onsite
2
Port on the door status
Any AI/DI port on the
Connected onsite
