Huawei FusionModule800 Installation Guide

FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
A Appendix
Issue 10 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
279
No.
From
To
Remarks
20
Smart ETH gateway
Access actuator
Connected onsite
21
Access actuator
Card reader with a keypad
Connected onsite
22
Access actuator
Fingerprint and card
reader
Fingerprint and card
reader with a keypad
Connected onsite
23
Access actuator
Exit button
Connected onsite
24
Access actuator
Emergency door release
button
Single/double door
magnetic lock
Connected onsite
Emergency door
release button
Single/double door
magnetic lock
Connected onsite
25
No. 24 port on the
LAN switch
WAN_1 port on the
ECC800
Connected onsite

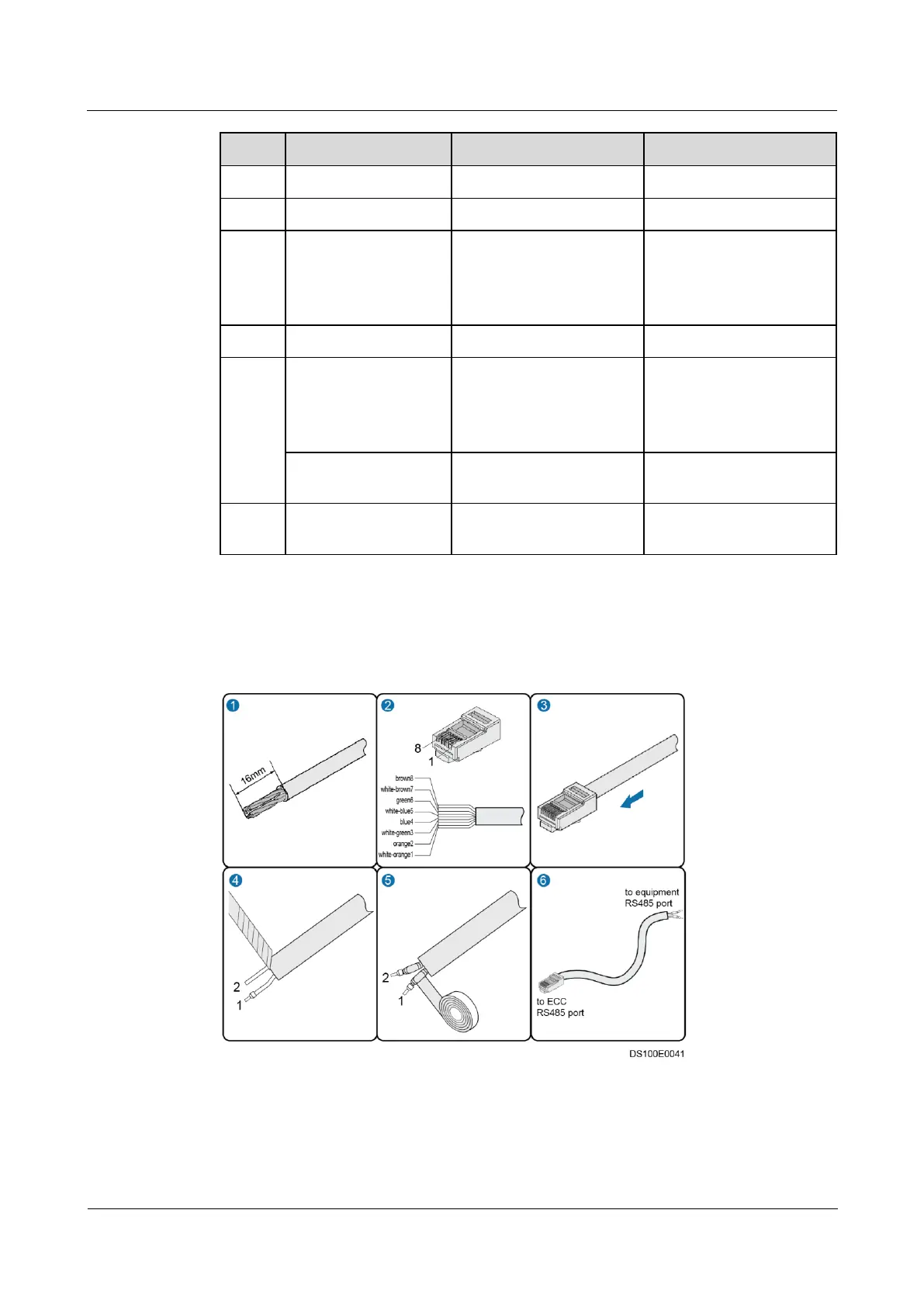

Preparing Monitoring Cables
Figure A-4 Preparing monitoring cables
