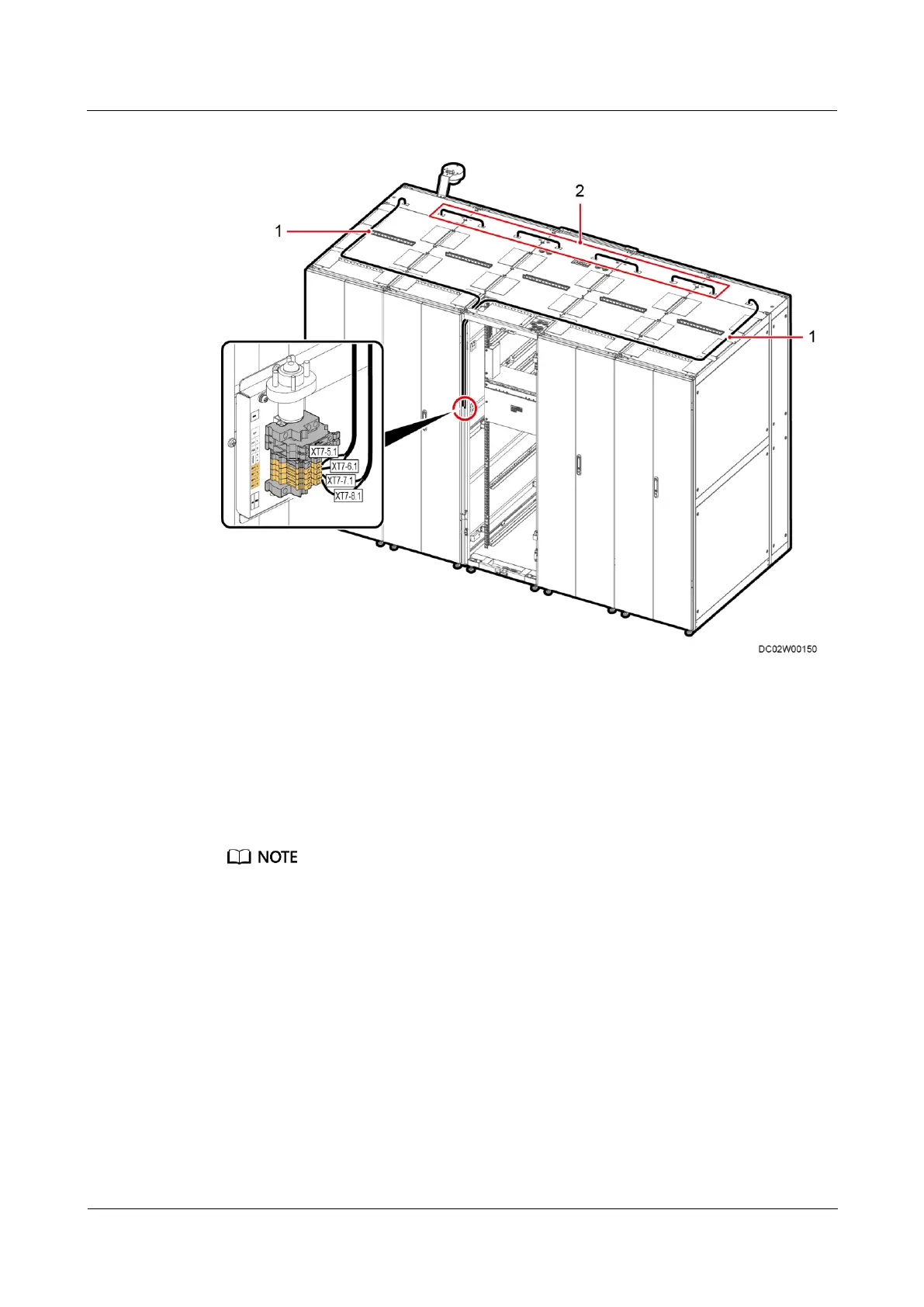

Figure 3-25 Connecting cables to the emergency fan assemblies
(1) Power cable (BOM number: 04092766; SN label on the packing bag: 8)
(2) Cascading cable (BOM number: 04080394; SN label on the packing bag: 11)
Step 5 Connect the cables delivered with the fan assemblies from the power ports on the two
outermost fan assemblies of the smart module to the XT7 terminal block at the rear door of
the Converged Cabinet.
Connect cables based on the cable labels and silk screens on the XT7 terminal block.
The XT7–5 and XT7–7 terminals on the XT7 terminal block are 48 V (+) ports, and the XT7–6 and
XT7–8 terminals are 48 V (–) ports.
----End
