FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.
When there are more than six cabinets in the cold aisle and the indoor unit is installed
inside the cabinet, install an air director in front of the indoor unit.
When pushing an air director into the aisle containment, align the positioning poles at the
bottom of the left and right sides of the air director with the positioning holes in the aisle.
1. Install and secure the air director fasteners on the side columns.

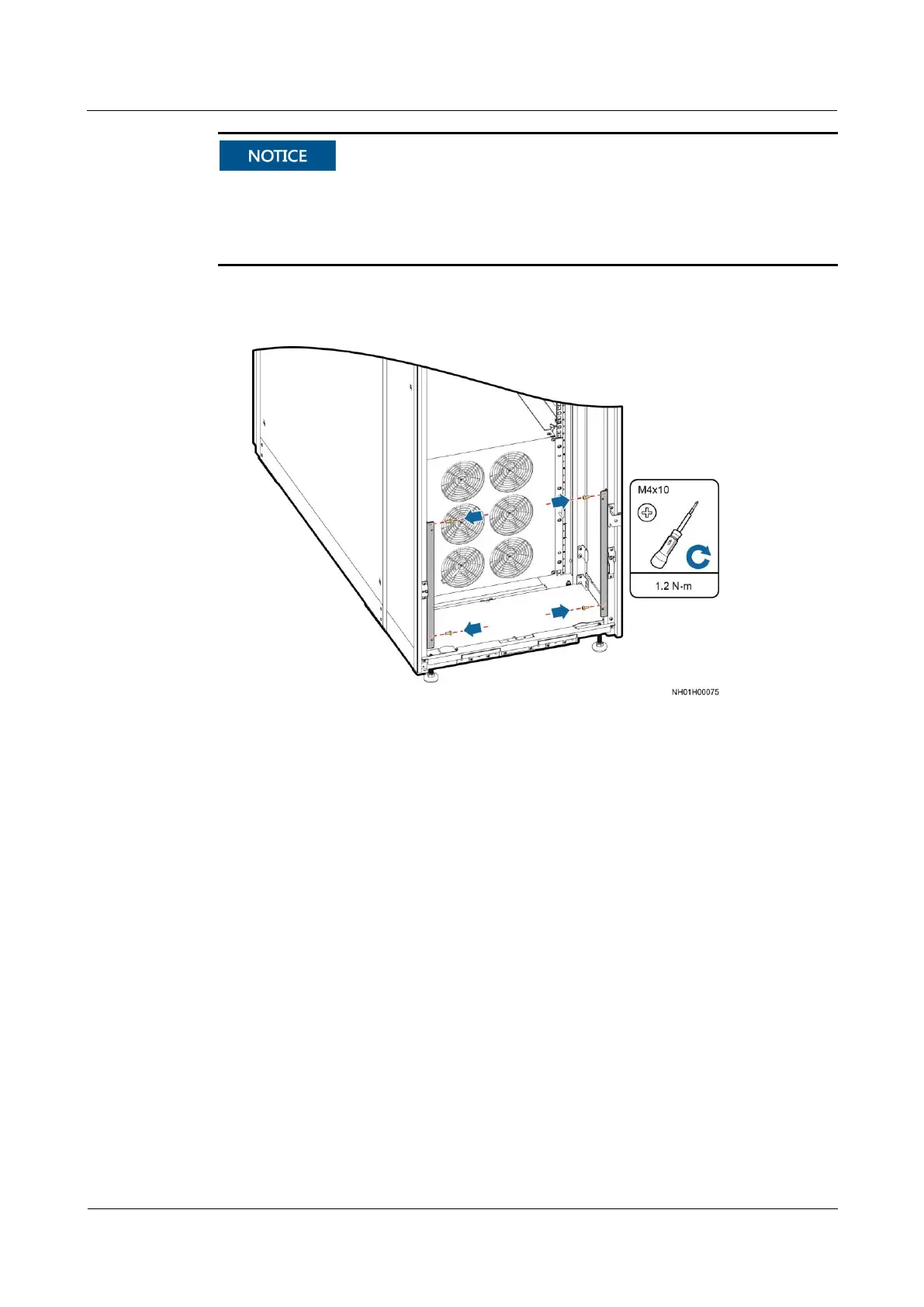

Figure 3-42 Installing air director fasteners
2. Install an air director in front of the indoor unit in the cabinet and secure the control unit
using four M5 tapping screws, as shown in Figure 3-43.
