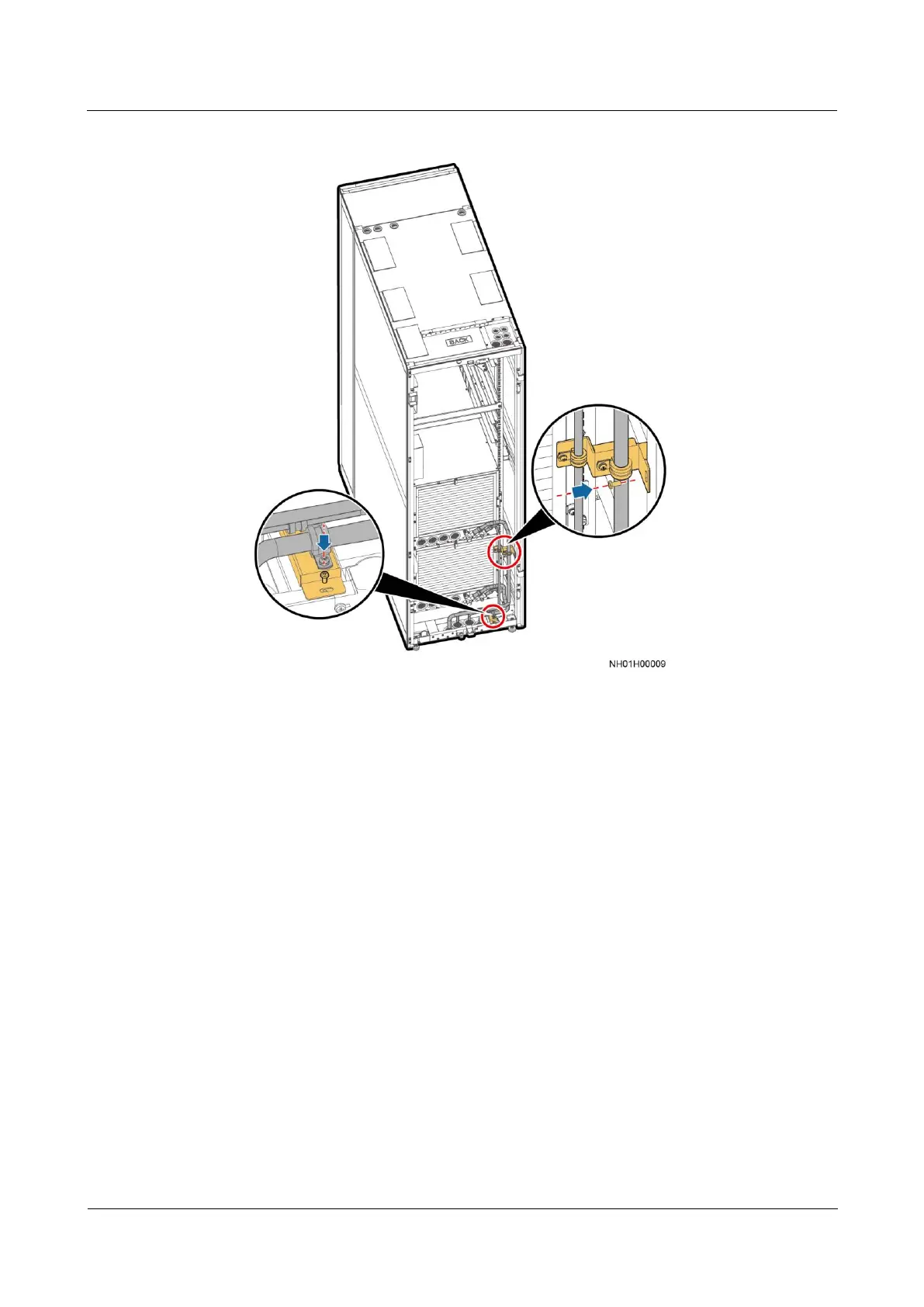

Figure 3-58 Bottom pipe routing inside the Converged Cabinet

(Optional for installing a third smart cooling product) Laying out pipes inside the IT
cabinet
Figure 3-59 shows the pipe layout.
