iManager NetEco 6000
Device Installation and Commissioning Guide
Copyright © Huawei Technologies Co., Ltd.
Context

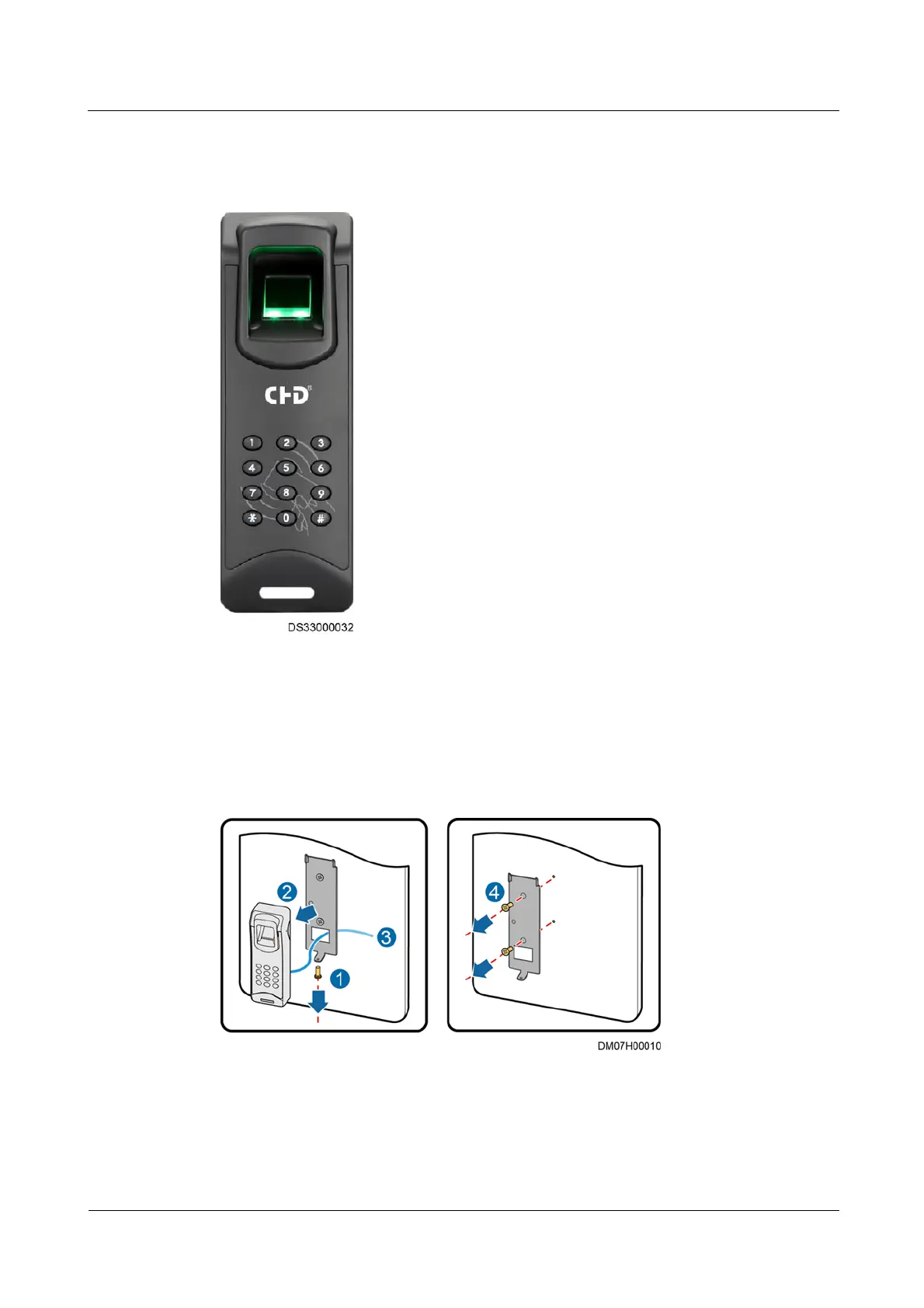

Figure 7-37 Fingerprint and card reader with a keypad
Procedure
Step 1 Remove the screw that secures the fingerprint and card reader with a keypad, and remove the
cable, as shown by (1), (2), and (3) in Figure 7-38.
Figure 7-38 Replacing a fingerprint and card reader with a keypad
Step 2 Remove the original bottom plate, as shown by (4) in Figure 7-38.
Step 3 Take out the bottom plate of the new fingerprint and card reader with a keypad and secure it.
