iManager NetEco 6000
Device Installation and Commissioning Guide
Copyright © Huawei Technologies Co., Ltd.

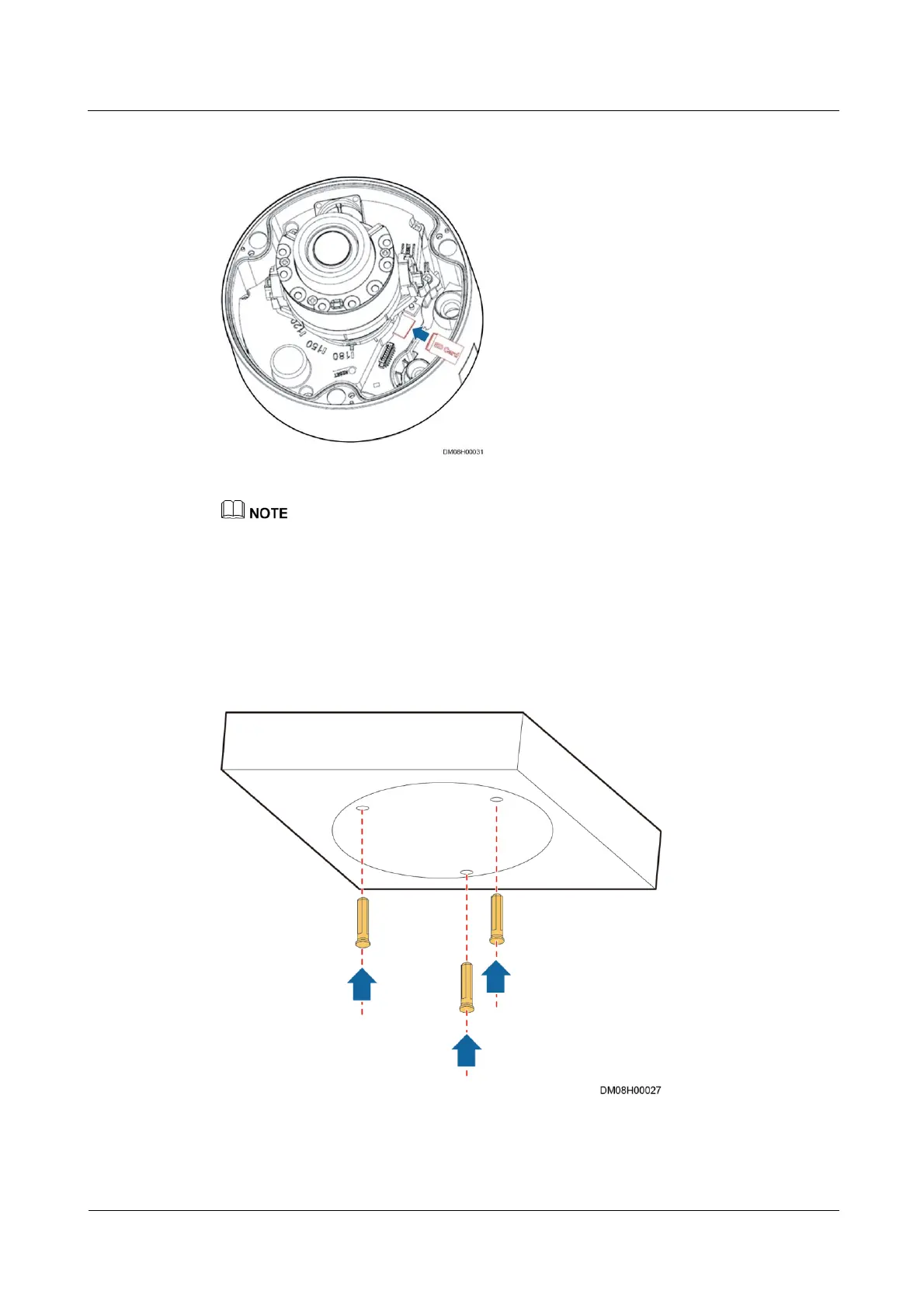

Figure 3-32 Installing an SD card
When the camera is not connected or cannot be connected to a video surveillance platform for a long
time, you are advised to disable video buffering of the camera to increase the service life of the SD
card.
Step 2 Paste the drilling sticker in the camera installation position and ensure that the center of the
sticker overlaps the center of the cable outlet on the wall. Obtain a drill bit with a 5 mm
diameter and drill four 35 mm holes in the specified positions marked by the stickers. Use a
claw hammer to install an expansion bolt into the hole.
Figure 3-33 Ceiling installation
