iManager NetEco 6000
Device Installation and Commissioning Guide
3 Installing Devices
Issue 03 (2019-03-10)
Copyright © Huawei Technologies Co., Ltd.
39

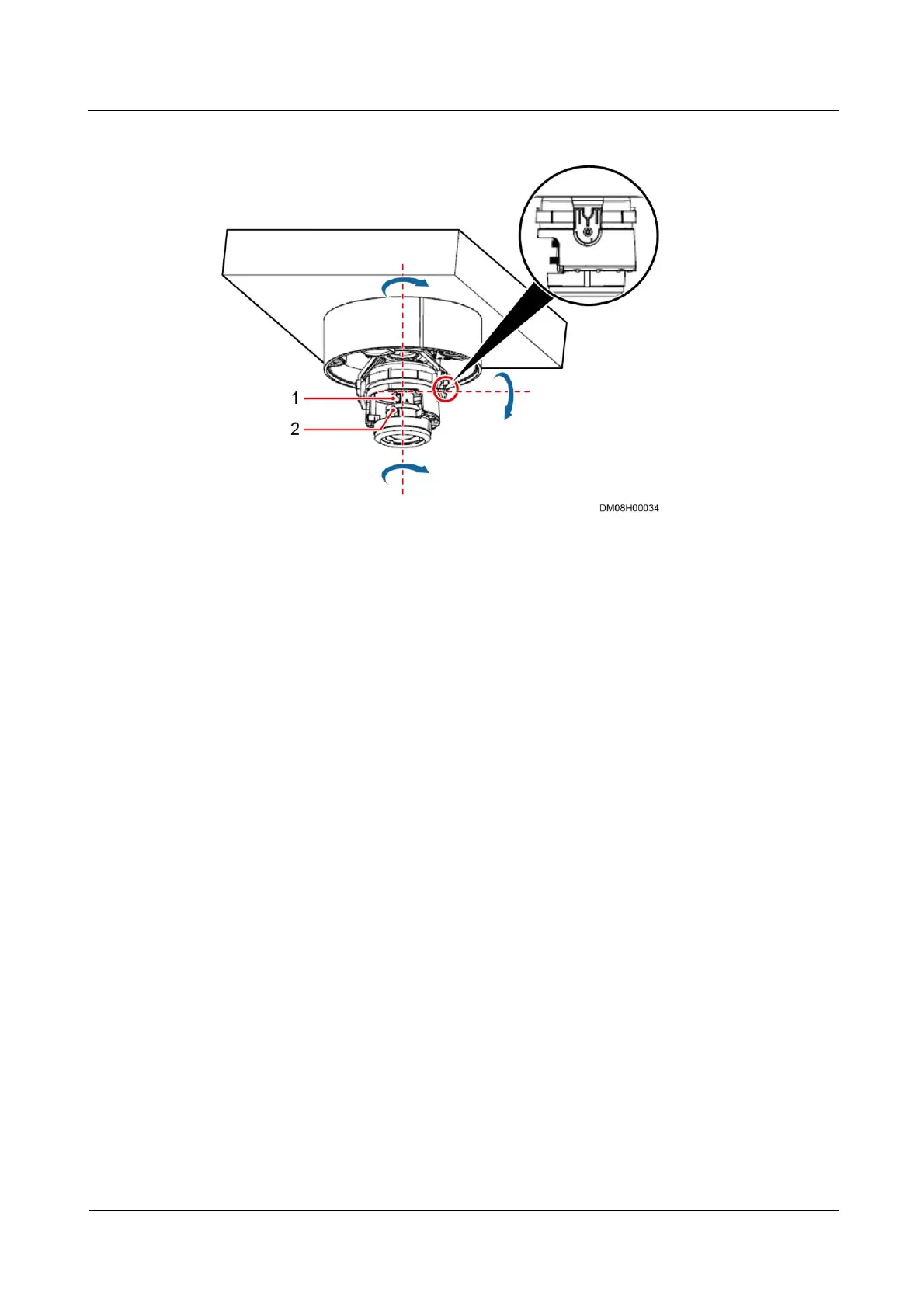

Figure 3-36 Adjusting the camera surveillance angle
(1) Zoom bolt
(2) Focus bolt
Step 6 Lightly press the inner cover, and fix it to the chipset. Then align the transparent cover with
the base through the tapped holes, close the transparent cover, and use a Phillips screwdriver
to tighten the screws.
