Table 4-1 RH2288H V3 port description
No.
Interface
Type
Description
1
eth0 GE
interface
Used for connecting to the LAN switch. eth0 and eth1
comprise a bond, which is used for providing external
services.

If southbound and northbound network isolation is
not adopted, only eth0 or eth1 is required.

If southbound and northbound network isolation is
adopted, both eth0 (or eth1) and eth2 (eth3) are
required.
eth0 (or eth1) is used for providing southbound
services while eth2 (or eth3) is used for providing
northbound services.
2
eth1 GE
interface
3
eth2 GE
interface
4
eth3 GE
interface
5
USB interface
Used for connecting to the USB service or the KVM.
6
iBMC
management
interface
Used for connecting to the PC computer to manage
the RH2288H V3 server.
7
VGA interface
Used for connecting to the monitor or KVM.
8
Server serial
interface
Used for connecting to the SMS modem or
commissioning.
Ports on the RH5885 V3 rear panel

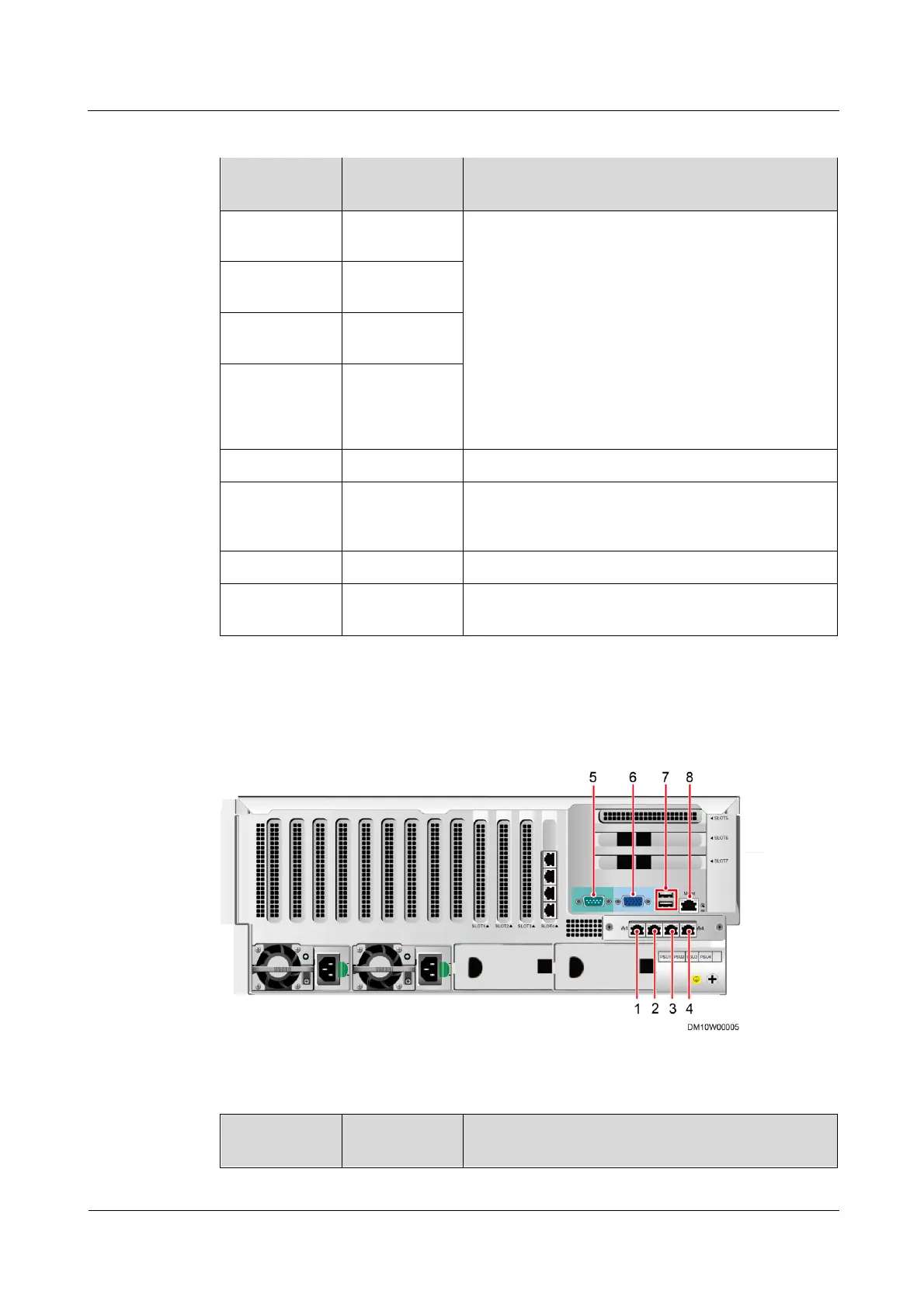

Figure 4-2 Ports on the RH5885 V3 rear panel
Table 4-2 RH5885 V3 port description
No.
Interface
Type
Description
