4 Connecting Monitoring Cables to Devices
Issue 03 (2019-03-10)
Copyright © Huawei Technologies Co., Ltd.
61
No.
Interface
Type
Description
1
eth0 GE
interface
Used for connecting to the LAN switch. eth0 and eth1
comprise a bond, which is used for providing external
services.

If southbound and northbound network isolation is
not adopted, only eth0 or eth1 is required.

If southbound and northbound network isolation is
adopted, both eth0 (or eth1) and eth2 (eth3) are
required.
eth0 (or eth1) is used for providing southbound
services while eth2 (or eth3) is used for providing
northbound services.
2
eth1 GE
interface
3
eth2 GE
interface
4
eth3 GE
interface
5
Server serial
interface
Used for connecting to the SMS modem or
commissioning.
6
VGA interface
Used for connecting to the monitor or KVM.
7
USB interface
Used for connecting to the USB service or the KVM.
8
iBMC
management
network
interface
Used for connecting to the PC to manage the RH5885
V3 server.
Ports on the 2288H V5 rear panel

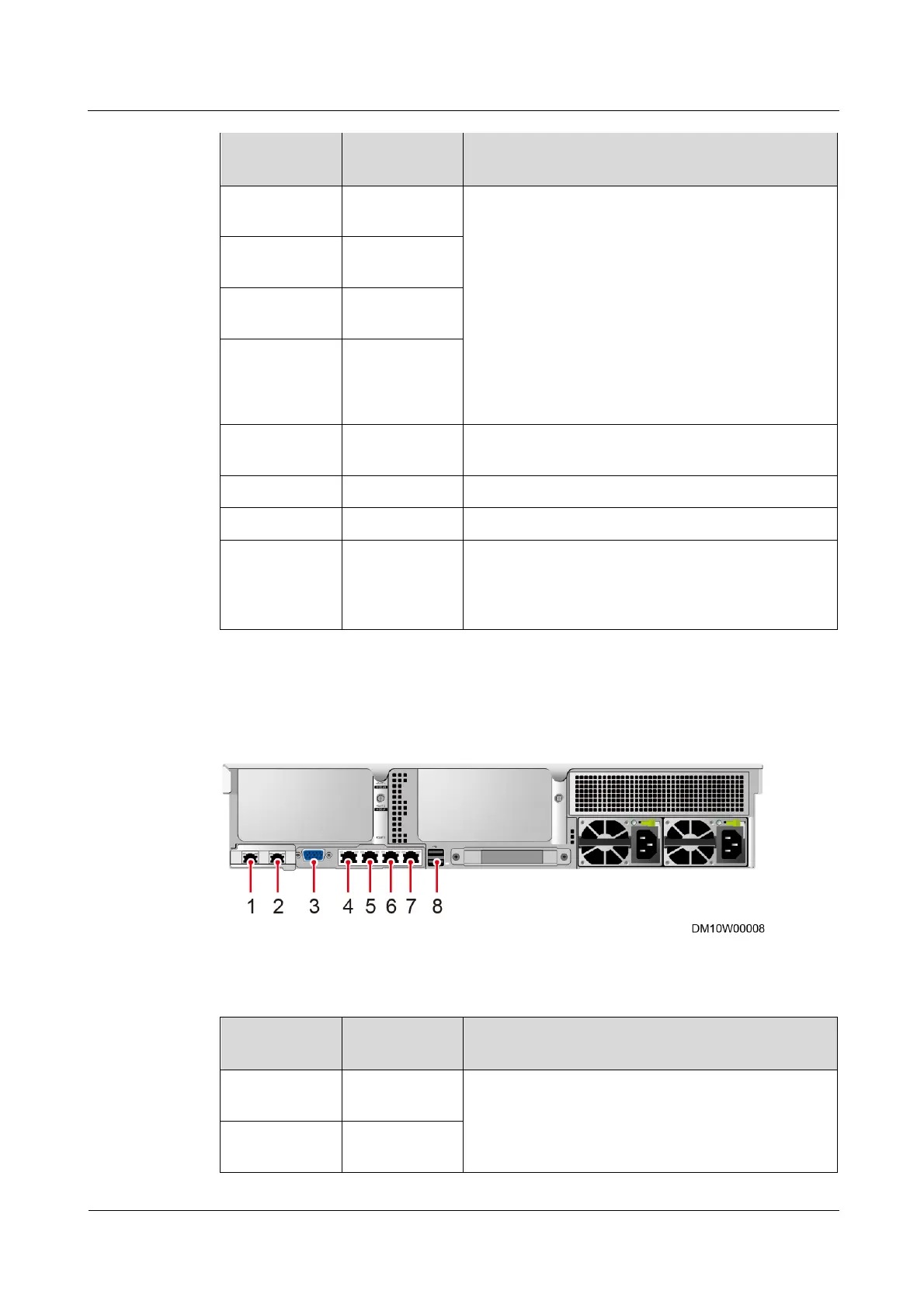

Figure 4-3 Ports on the 2288H V5 rear panel
Table 4-3 2288H V5 port description
No.
Interface
Type
Description
1
eth0 GE
interface
Used for connecting to the LAN switch. eth0 and eth1
comprise a bond, which is used for providing external
services.

If southbound and northbound network isolation is
2
eth1 GE
interface
