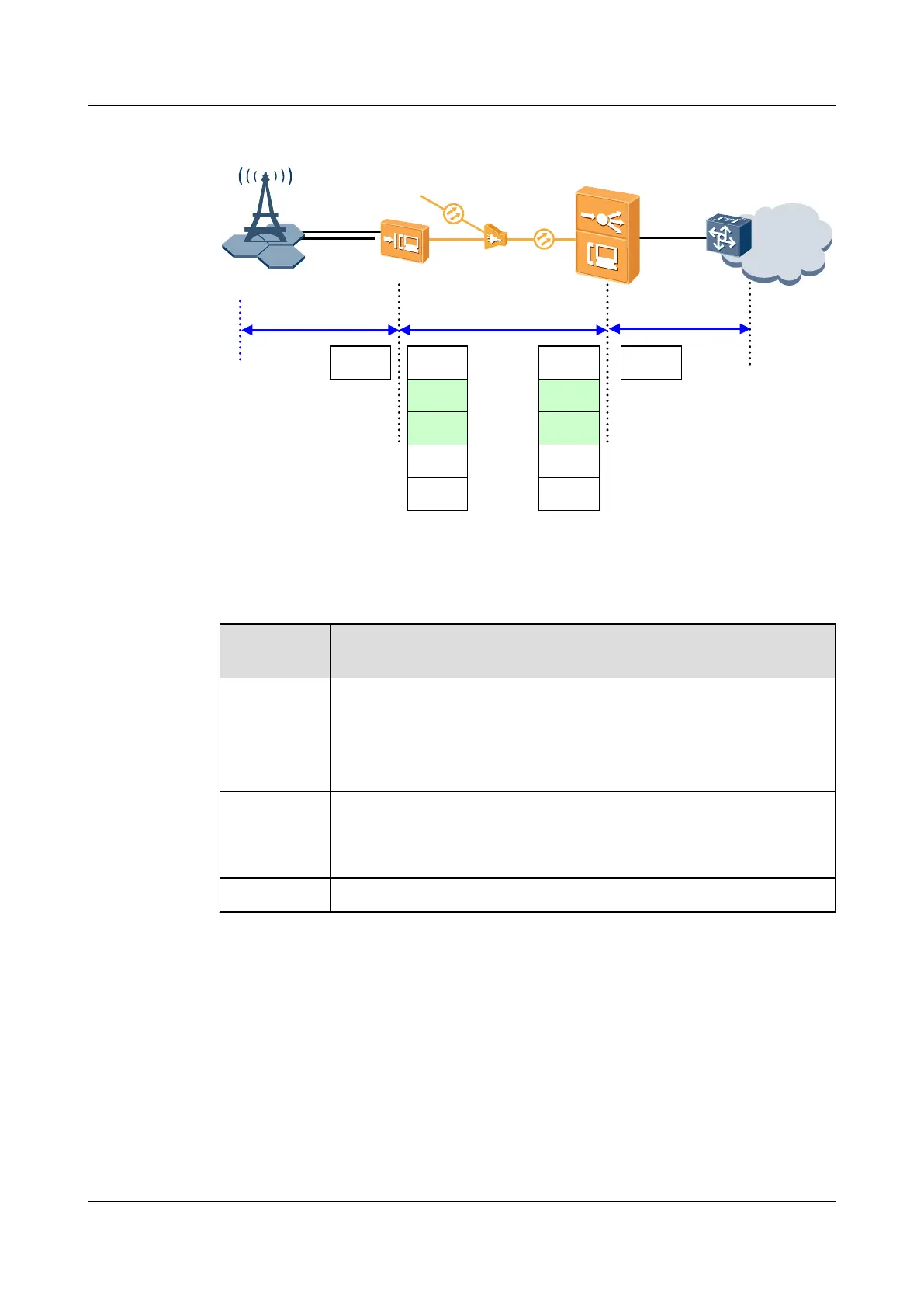

Figure 14-12 SAToP encapsulation
SDH
OLT
NodeB
E1
ONU
E1
E1/STM-1
SAToP
ETH
VLAN
UDP1
IP1
TDM
ETH
VLAN
UDP1
IP1
TDMTDM TDM
Data Plan
Configurati
on Item
Data
EDTB (OLT) Port: 0/5/0
Board IP address: 10.10.50.10
Board MAC address: dynamically obtained (remark 1)
Local UDP port number: 50048 (remark 2)
E1 port
(ONU)
Board IP address: 10.10.50.20
Board MAC address: dynamically obtained (remark 1)
UDP port number: 50048 (remark 2)
VLAN SVLAN: 300
Remark 1: MAC address configuration modes (statically configured or dynamically obtained)
at two ends must be consistent to establish a SAToP connection. It is recommended that MAC
addresses be dynamically obtained, which facilitates configuration and maintenance.
Remark 2: The UDP port cannot be a port that is widely used in the industry and for specific
services. For example, port 80 is used for HTTP service. The dynamic and private ports are
recommended.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
14 FTTM Configuration (Base Station Access)
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1421
