NOTE
The priorities listed in the preceding table are recommended. Change the priorities based on site and carriers'
requirements.
QoS Model
Figure 15-3 shows the end to end (E2E) QoS processing for the data over cable service interface
specification (DOCSIS) service. This section uses a distributed cable modem termination system
(D-CMTS) that works as a GPON remote extended frame of an optical line terminal (OLT) as
an example.
The only difference between the QoS processing for a D-CMTS that works as a GE extended
frame and that for a D-CMTS that works as a GPON extended frame is as follows: The QoS
processing is not required for the GPON module of the D-CMTS that works as a GE extended
frame.

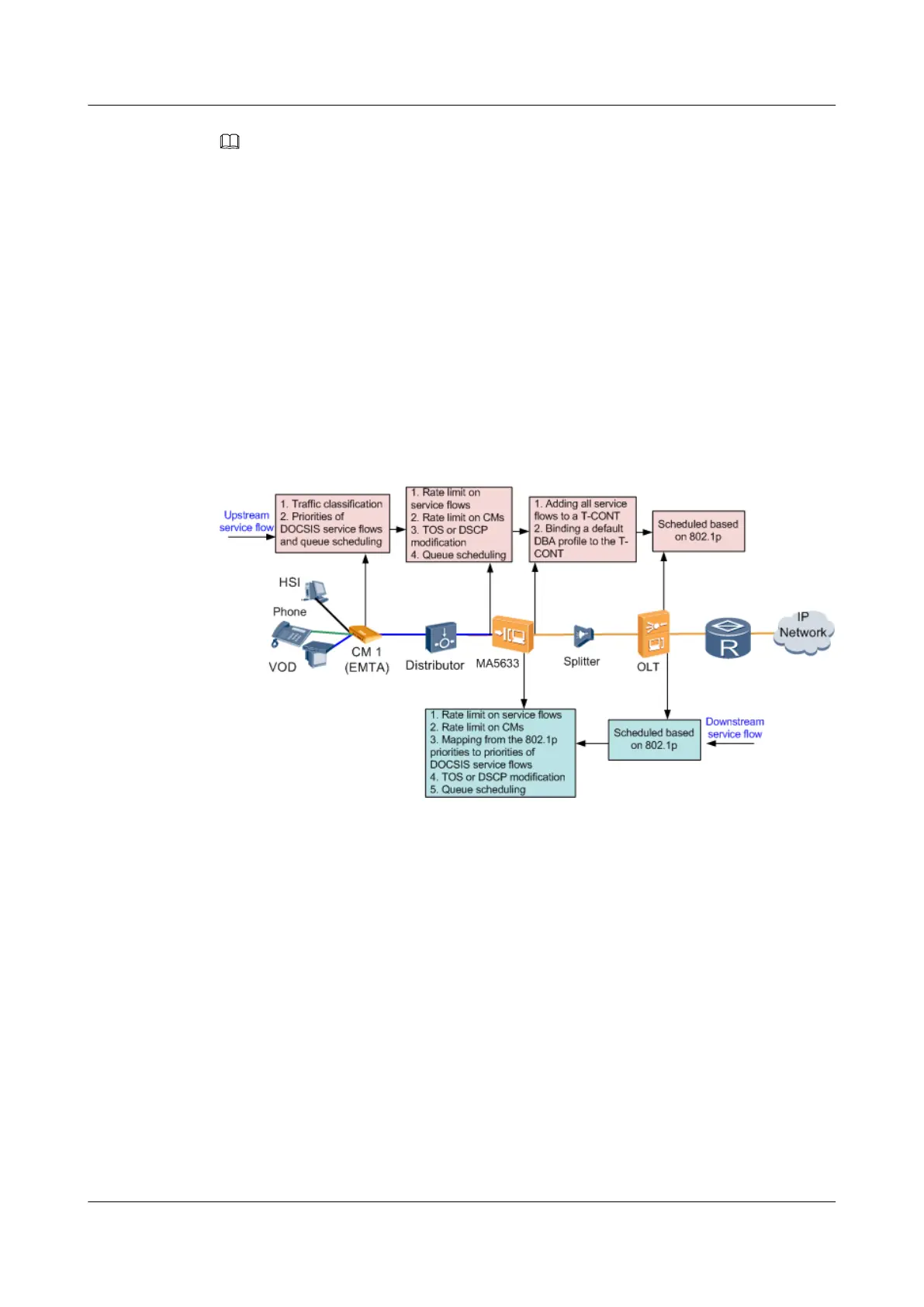

Figure 15-3 QoS module for a D-CMTS that works as a GPON extended frame
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
15 OptiCable D-CMTS Configuration (MA5633 Working as
a Remote Extended Frame)
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1527
