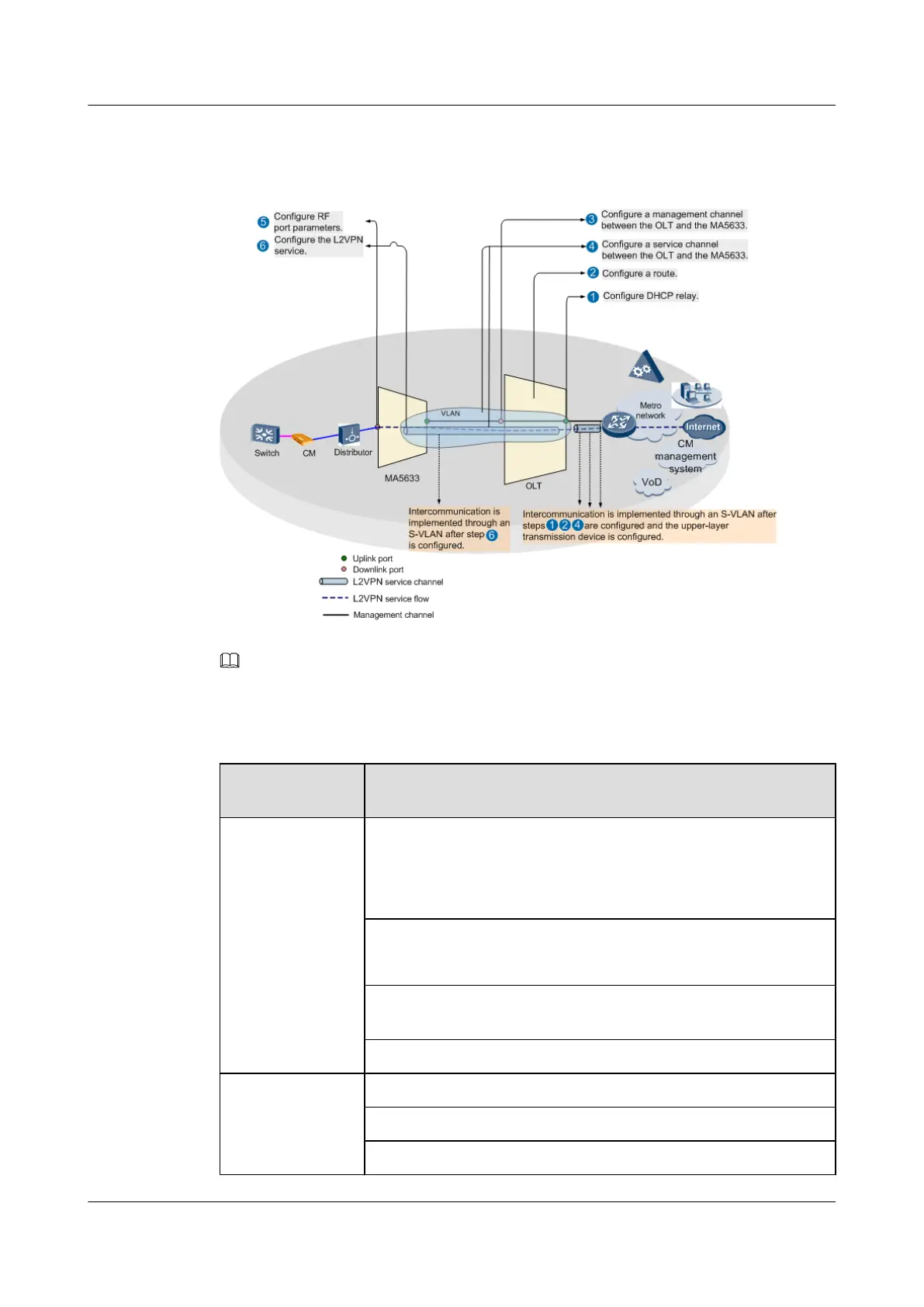

Figure 16-7 shows the configuration roadmap for the L2VPN service networking.
Figure 16-7 Configuration roadmap for the L2VPN service networking
NOTE
Before logging in to the MA5633 to configure services on it, ensure that the MA5633 has been properly
connected.
The following table describes the configuration steps.
Configuration
Object
Step
Optical line
terminal (OLT)
l IPv4: Configure Dynamic Host Configuration Protocol (DHCP)
relay.
l IPv6: Configure Dynamic Host Configuration Protocol (DHCP)
relay (IPv6).
l IPv4: Configure a route.
l IPv6: Configure a route (IPv6).
Configure a management channel between the OLT and the D-
CMTS.
Configure a service channel between the OLT and the D-CMTS.
MA5633 Configure radio frequency (RF) port parameters.
Configure the L2VPN service.
Verify the configured service.
